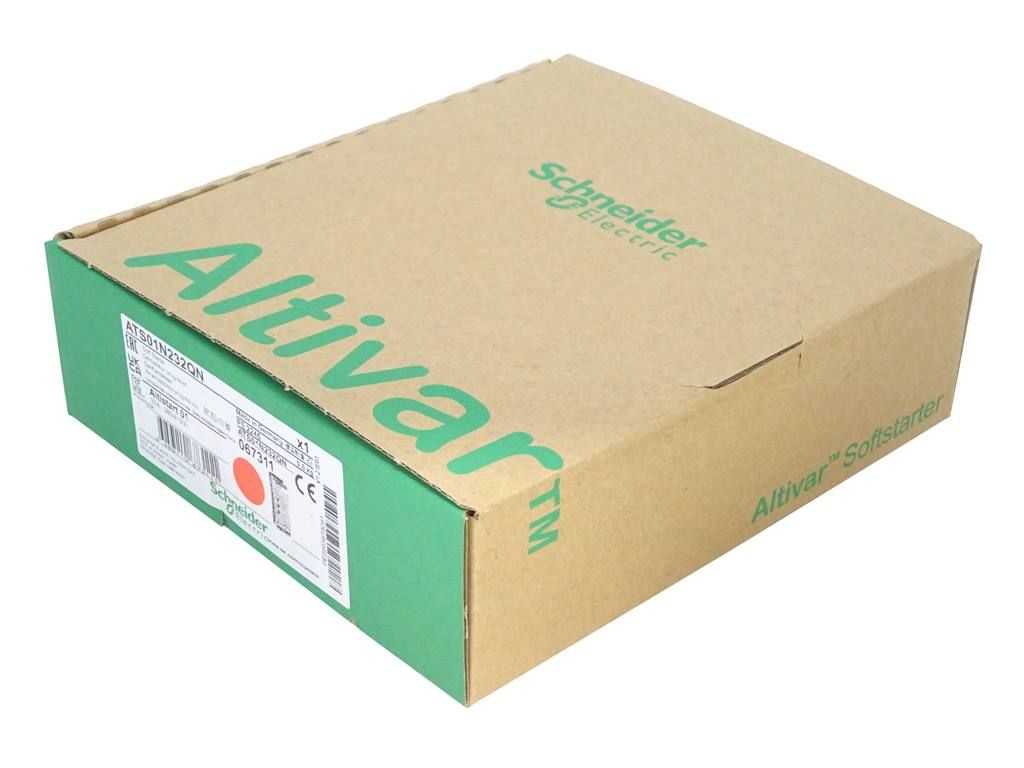

Schneider Electric
ATS01N232QN
- Zustand:
- Neu versiegelt ab Werk
- Verfügbar:
- 1 Stk.Auf LagerAktualisiert am: 14-06-2024
- Angebot von:
Vertrauenswürdiger Automa.Net Lieferant- Geschätzte Lieferung:
- Auf Anfrage
- Garantie:
- 24 Monate
1
€335.00
€301.50
netSchneider Electric
ATS01N232QN
1 / 5
Beschreibung
Aktiv Reif
This Altistart 01 soft starter is DIN rail mounted and can feed 3-phase asynchronous motors with a rating up to 32A. This Altistart 01 can be used for a motor rated power up to 7.5kW or 10hp for 3-phase (200V to 240V AC). This DIN rail mounted soft starter is designed to enable smooth start for simple machines such as conveyors, conveyor belts, pumps, fans, compressors, automatic doors and gates, small cranes and belt-driven machinery. It is 45mm wide, this makes it one of the smallest soft starters on the market; it can be installed nearly everywhere. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Simple setup with only 2 settings: possible to configure by non-specialists. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.- Country of Origin
- DE
- Part Number
- ATS01N232QN
- Tariff Code
- 85371098
- EAN
- 3389110673111
- UNSPSC
- 39121521
€221.00
net1
Zahlungsmethoden:
- Bestes Angebot von:
Vertrauenswürdiger Automa.Net Lieferant- Verfügbarkeit:
- 4 Stk.Auf LagerAktualisiert am: 09-11-2024
- Garantie:
- 12 Monate
- Geschätzte Lieferung:
- Auf Anfrage
- Zustand:
- Neu versiegelt ab Werk
Neu versiegelt ab Werk - Ein brandneuer, unbenutzter, ungeöffneter, unbeschädigter Artikel in seiner original vom Hersteller versiegelten Verpackung.
Insgesamt 1.319 Parts In-Stock von 47 Distributors
Versandinformationen
Sicherer Zahlungsprozess
Rückgabe- und Erstattungsrichtlinien
Versandrichtlinien
Garantiebedingungen
Verfügbare Angebote (53)
Schneider Electric
ATS01N232QN
- Zustand:
- Neu versiegelt ab Werk
- Verfügbar:
- 9 Stk.Auf LagerAktualisiert am: 09-11-2024
- Angebot von:
Vertrauenswürdiger Automa.Net Lieferant- Geschätzte Lieferung:
- Auf Anfrage
1
€353.70
netSchneider Electric
ATS01N232QN
- Zustand:
- Neu versiegelt ab Werk
- Verfügbar:
- 23 Stk.Auf LagerAktualisiert am: 09-11-2024
- Angebot von:
Vertrauenswürdiger Automa.Net Lieferant- Geschätzte Lieferung:
- Auf Anfrage
1
£375.42
netSchneider Electric
ATS01N232QN
- Zustand:
- Neu versiegelt ab Werk
- Verfügbar:
- 23 Stk.Auf LagerAktualisiert am: 09-11-2024
- Angebot von:
Vertrauenswürdiger Automa.Net Lieferant- Geschätzte Lieferung:
- Auf Anfrage
1
€473.30
netSchneider Electric
ATS01N232QN
- Zustand:
- Neu versiegelt ab Werk
- Verfügbar:
- 9 Stk.Auf LagerAktualisiert am: 09-11-2024
- Angebot von:
- Vertrauenswürdiger Automa.Net Lieferant
- Geschätzte Lieferung:
- Auf Anfrage
1
€513.00
netAngebot mit Herstellervorlaufzeit
Lieferung:Auf Anfrage
Bester Preis:
€185.42
Environment
- Product Certifications
- C-tick || CSA || CCC || GOST || UL || B44.1-96/ASME A17.5 for starter wired to the motor delta terminal
- Standards
- EN/IEC 60947-4-2
- Electromagnetic Compatibility
- conducted and radiated emissions level B CISPR 11 || conducted and radiated emissions level B IEC 60947-4-2 || damped oscillating waves level 3 IEC 61000-4-12 || electrostatic discharge level 3 IEC 61000-4-2 || EMC immunity level 3 EN 50082-1 || EMC immunity level B EN 50082-2 || harmonics level 3 IEC 1000-3-2 || harmonics level 3 IEC 1000-3-4 || immunity to conducted interference caused by radio-electrical fields level 3 IEC 61000-4-6 || immunity to electrical transients level 4 IEC 61000-4-4 || immunity to radiated radio-electrical interference level 3 IEC 61000-4-3 || micro-cuts and voltage fluctuation IEC 61000-4-11 || voltage/current impulse level 3 IEC 61000-4-5
- Ambient Air Temperature For Operation
- -10-40 °C without derating) || 40-50 °C with current derating of 2 % per °C)
- Shock Resistance
- 15 gn 11 ms EN/IEC 60068-2-27
- Vibration Resistance
- 1 gn 13-150 Hz)EN/IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz)EN/IEC 60068-2-6
- Pollution Degree
- 2 EN/IEC 60947-4-2
- Ambient Air Temperature For Storage
- -25-70 °C EN/IEC 60947-4-2
- Relative Humidity
- 5-95 % without condensation or dripping water EN/IEC 60068-2-3
- Ip Degree Of Protection
- IP20
- Operating Altitude
- <= 3280.84 ft (1000 m) without derating || > 3280.84 ft (1000 m) with current derating of 2.2 % per additional 100 m
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Reach Free Of Svhc
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Electrical Connection
- 4 mm screw clamp terminal - rigid 1 1...10 mm² AWG 8 power circuit || screw connector - rigid without cable end 1 0.5...2.5 mm² AWG 14 control circuit || 4 mm screw clamp terminal - rigid with cable end 2 1...6 mm² AWG 10 power circuit || screw connector - rigid 2 0.5...1 mm² AWG 17 control circuit || screw connector - flexible with cable end 1 0.5...1.5 mm² AWG 16 control circuit || 4 mm screw clamp terminal - flexible without cable end 1 1.5...10 mm² AWG 8 power circuit || screw connector - flexible without cable end 1 0.5...2.5 mm² AWG 14 control circuit || 4 mm screw clamp terminal - flexible with cable end 2 1...6 mm² AWG 10 power circuit || 4 mm screw clamp terminal - flexible without cable end 2 1.5...6 mm² AWG 10 power circuit || screw connector - flexible without cable end 2 0.5...1.5 mm² AWG 16 control circuit || 4 mm screw clamp terminal - flexible with cable end 1 1...6 mm² AWG 10 power circuit
- Network Frequency
- 47.5...63 Hz
- [Uc] Control Circuit Voltage
- built into the starter
- Height
- 154 mm
- Deceleration Time Symb
- adjustable from 1 to 10 s
- Discrete Input Voltage
- 24...40 V
- Maximum Switching Current
- relay outputs 2 A 250 V AC cos phi = 0.5 20 ms inductive || relay outputs 2 A 30 V DC cos phi = 0.5 20 ms inductive
- Discrete Output Voltage
- 24 V 6...30 V) open collector logic
- Marking
- CE
- Power Range
- 15-25 kW 380-440 V 3 phase
- Net Weight
- 0.56 kg
- Discrete Output Current
- 2 A DC-13 || 3 A AC-15
- Motor Starter Type
- soft starter
- Function Available
- integrated bypass
- Supply Voltage Limits
- 342-456 V
- Starting Time
- adjustable from 1 to 10 s || 1 s / 50 || 10 s / 5 || 5 s / 10
- Minimum Switching Current
- 10 mA 6 V DC relay outputs
- Discrete Input Type
- logic LI1, LI2, BOOST) stop, run and boost on start-up functions <= 8 mA 27 kOhm
- Assembly Style
- with heat sink
- Compatibility Code
- ATS01N2
- Output Voltage
- <= power supply voltage
- Operating Position
- vertical +/- 10 degree
- Display Type
- 1 LED Green)starter powered up || 1 LED Yellow)nominal voltage reached
- Width
- 45 mm
- Depth
- 131 mm
- Discrete Input Logic
- positive LI1, LI2, BOOST < 5 V <= 0.2 mA > 13 V, >= 0.5 mA
- Starting Torque
- 30...80 % of starting torque of motor connected directly on the line supply
- Tightening Torque
- 0.5-0.5 N.m || 1.9-2.5 N.m
- Supply Frequency
- 50...60 Hz - 5...5 %
- Discrete Output Type
- open collector logic LO1 end of starting signal || relay outputs R1A, R1C NO
Specifications
- Current Consumption
- 160 A at nominal load
- Product Destination
- asynchronous motors
- Range Of Product
- Altistart 01
- Product Or Component Type
- soft starter
- Motor Power Kw
- 15 kW, 3 phase 380...415 V
- Phase
- 3 phase
- Power Dissipation In W
- 4.5 W at full load and at end of starting || 324.5 W in transient state
- Utilisation Category
- AC-53B EN/IEC 60947-4-2
- Icl Starter Rating
- 32 A
- Type Of Start
- start with voltage ramp
- [Us] Rated Supply Voltage
- 380...415 V - 10...10 %
- Product Specific Application
- simple machine
- Device Short Name
- ATS01
