Schneider Electric BMH0702T26A1A

Name: servo motor BMH, 2.5Nm, 8000rpm, untapped shaft, without brake, IP65, IP67, 16bit encoder, straight
Brand: Schneider Electric
SKU: BMH0702T26A1A

servo motor BMH, 2.5Nm, 8000rpm, untapped shaft, without brake, IP65, IP67, 16bit encoder, straight

1 / 1

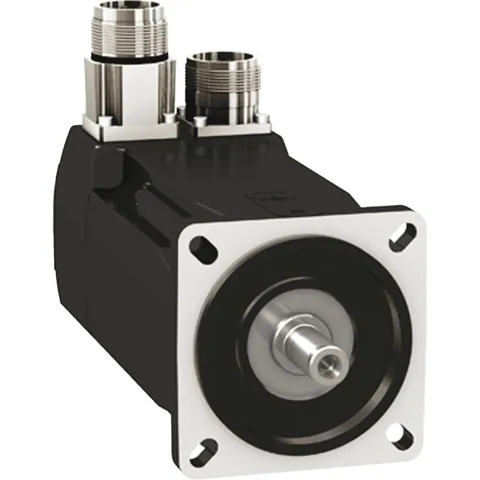

Katalogbild des Herstellers

Produktbeschreibung

Lebenszyklus:

This servo motor, designated as BMH, is engineered for high-performance motion control with a maximum mechanical speed of 8000 RPM. It features a smooth shaft, adheres to IP65 and IP67 standards, and does not include a holding brake. The motor is equipped with a 16-bit absolute single-turn encoder, offering a feedback resolution of 32768 points per turn.

With a rated supply voltage of 240 V and a continuous power output of 1.51 W, it operates efficiently in various applications including printing, packaging, handling, clamping, and material processing. The continuous stall current is 5.38 A, and the continuous stall torque reaches 2.5 N.m. The motor's dimensions include a 70 mm flange size and a weight of 2.3 kg.

As part of the Lexium 32 series, this motor is compatible with the LXM32nD30M2 and LXM32nD18M2 servo drives, supporting a three-phase electrical connection through straight connectors. It is designed with a natural convection cooling system, ensuring optimal performance in demanding environments.

Benötigen Sie weitere Informationen?

Rufen Sie uns an unter:+48 17 778 34 19

Angebote vergleichen

Zahlungsmethoden:

Angebotsdetails

Angebot von:: Vertrauenswürdiger Lieferant — Deutschland, Mitglied seit 2024
Verfügbarkeit:: Auf BestellungLieferzeit noch zu bestätigen
Garantie:: Nicht angegeben
Zustand:: Neu versiegelt ab Werk

Neu versiegelt ab Werk - Ein brandneuer, unbenutzter, ungeöffneter, unbeschädigter Artikel in seiner original vom Hersteller versiegelten Verpackung.

Der Verkäufer ist verantwortlich für den Versand des Produkts und die Rechnungsstellung

Spezifikationen

Marke: Schneider Electric
Rohs Exemption Information: Yes
Mercury Free: Yes
Environmental Disclosure: ENVPEP111002EN
Sustainable Offer Status: Green Premium product
Pvc Free: Yes
Reach Regulation: Reference contains Substances of Very High Concern above the threshold

Verfügbare Angebote

(2)

	Zustand	Verfügbarkeit	Lieferant	Garantie	Aktion
	Zustand Neu versiegelt ab Werk	Verfügbarkeit Auf BestellungLieferzeit noch zu bestätigen	Lieferant DeutschlandVertrauenswürdiger Lieferant — Mitglied seit 2024	Garantie Nicht angegeben
	Zustand Neu versiegelt ab Werk	Verfügbarkeit Auf BestellungLieferzeit noch zu bestätigen	Lieferant ItalienVertrauenswürdiger Lieferant — Mitglied seit 2021, 10–19 Mitarbeiter	Garantie 12 Monate

Angebot mit Herstellervorlaufzeit

Direkt vom Hersteller - mit einer bestätigten, vorhersehbaren und völlig transparenten Lieferzeit.

Dokumente

Datenblatt

Datenblatt für Schneider Electric BMH0702T26A1A, einschließlich Spezifikationen und Funktionen.

Datenblatt herunterladen

CAD-Modelle

3D-CAD-Modell und technische Zeichnungen, bereit für Ihre Konstruktionssoftware.

CAD-Modell herunterladen

Produktdaten aktualisiert: 07-10-2026
