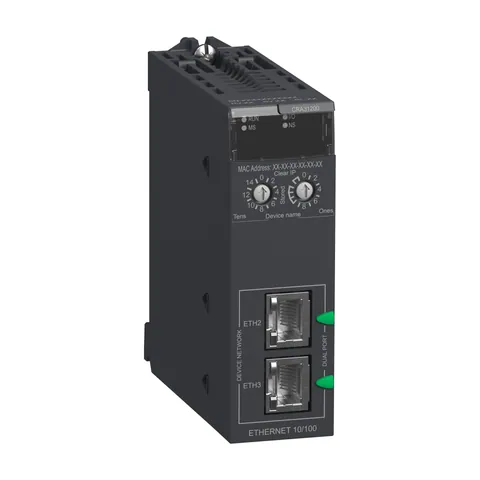

BMXCRA31200

Additional Information

Part Number

BMXCRA31200

UNSPSC

32151706

Tariff Code

8517620090

Country of Origin

FR

Environment

Ambient Air Temperature For Operation

-0-60 °C

Standards

EN/IEC 61131-2 || EN/IEC 61010-2-201 || UL 61010-2-201 || CSA C22.2 No 61010-2-201 || IACS E10 || EN/IEC 61000-6-5, interface type 1 and type 2 || EN/IEC 61850-3, location G

Product Certifications

CE || UL || CSA || RCM || EAC || Merchant Navy

Environmental Characteristic

standard environment

Directives

2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility

Ambient Air Temperature For Storage

-40-85 °C

Operating Altitude

<= 6561.68 ft (2000 m)

Ip Degree Of Protection

IP20

Contractual warranty

Warranty

18 months

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Reach Regulation

Reference contains Substances of Very High Concern above the threshold

California Proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation

X

Eu Rohs Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Complementary

Product Compatibility

0-128 discrete channel || 0-16 analog channel

Communication Network Type

IPv4 (internet protocol)

Height

100 mm

Fixing Mode

by screws

Communication Service

Ethernet/IP adapter || RSTP (Ring topology support) || Ethernet RIO network || Quality of Service (QoS) || CIP Explicit messaging (server) || Modbus TCP server for module diagnostics || DHCP client || TFTP client || FTP client || FDR client || SNTP client || SNMP agent

Exchange Mode

half duplex, full duplex, autonegotiation, auto MDIX

Net Weight

0.225 kg

Current Consumption

1200 mA

Topology

ring

Connector Type

2 RJ45

Function Available

CCOTF (configuration change on the fly) || input data is collected and published to the remote I/O head adaptor || output modules are updated with the data received from remote I/O head adaptor || diagnostics for remote I/O devices (Device DDT) || I/O extension rack

Communication Port Protocol

EtherNet/IP

Mounting Mode

rack-mounted

Number Of Port

2

Integrated Connection Type

2 port Ethernet RIO Network (RSTP)

Bus Type

bus X across the remote backplane

Input Voltage

3.3 V DC

Relative Humidity

95-95 % without condensation

Local Signalling

for module active (RUN) 1 LED (green) || for module error (ERR) 1 LED (red) || for module status (Mod Status) 1 LED (green/red) || for network communication status (Net Status) 1 LED (green/red) || for Ethernet link diagnostics (STS) 1 LED (green)

Data Recording

10 ms time stamps

Cybersecurity

Syslog protocol support

Module Format

standard

Port Ethernet

10/100BASE-TX

Width

32 mm

Transmission Rate

10/100 Mbit/s

Depth

87.5 mm

Maximum Altitude Transport

3000 m

Specifications

Range Of Product

Modicon X80

Product Or Component Type

I/O expansion module

Product Specific Application

for remote I/O modules

Range Compatibility

Modicon M580 || Modicon Quantum

Device Application

X80 Ethernet RIO drop adaptor
