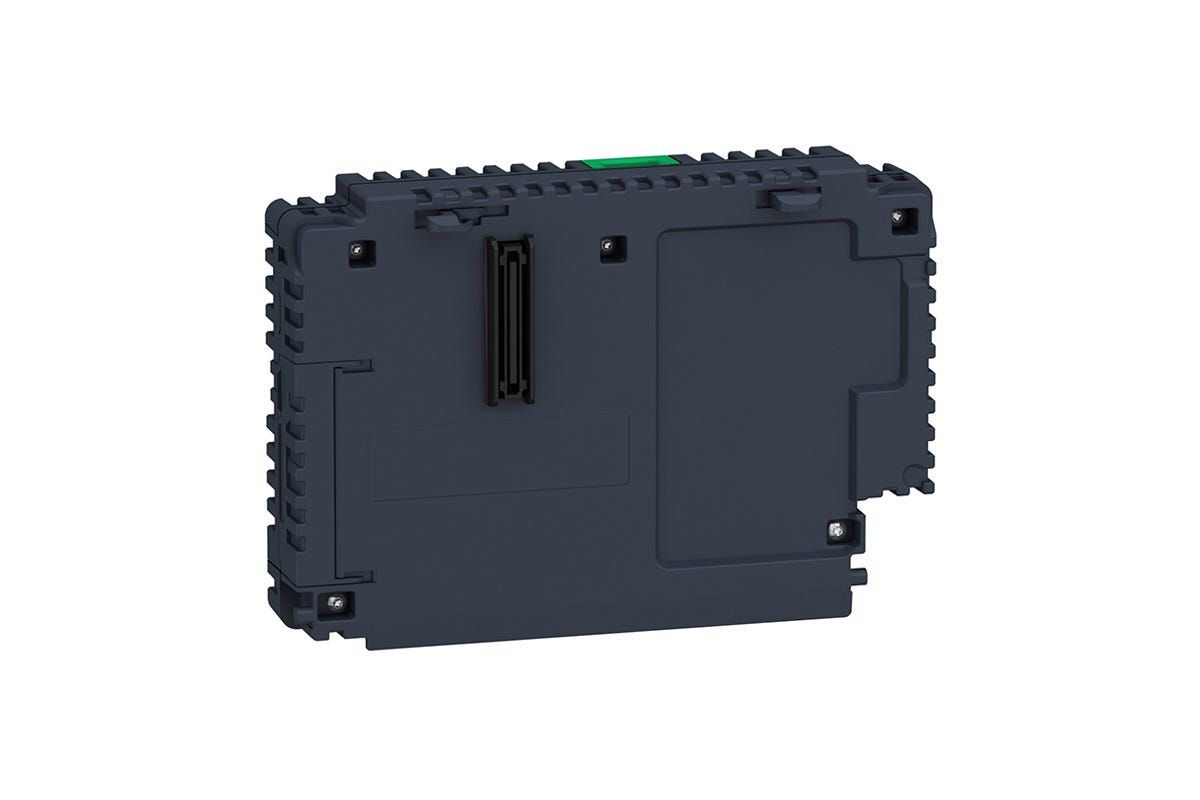

HMIG3U
- Erhalten Sie bis zu 90 Tage Zahlungsziele von 500+ Lieferanten
- Wiederverkaufsrabatte bis zu 40%!
Additional Information
- Part Number
- HMIG3U
- UNSPSC
- 32151707
- Tariff Code
- 8471801000
- Country of Origin
- CN
Environment
- Ambient Air Temperature For Operation
- 0-60 °C
- Standards
- CSA C22.2 No 142 || ANSI/ISA 12-12-01 || UL 508 || class I division 2 CSA C22.2 No 213 || IEC 61132-2
- Product Certifications
- CE || cULus || ATEX || IEC-Ex || RCM || GL || KC || cUL || EAC || ABS || BV || CCS || DNV || LR || RINA || UKCA || UKEX
- Electromagnetic Compatibility
- electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
- Vibration Resistance
- 3.5 mm constant amplitude 5-9 Hz) IEC 61131-2 || 9.8 m/s² 9-150 Hz) IEC 61131-2
- Pollution Degree
- 2 IEC 61131-2 ed.3
- Ambient Air Temperature For Storage
- -20-60 °C
- Relative Humidity
- 10-90 % non-condensing
- Operating Altitude
- 6561.68 ft (2000 m)
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1403023EN
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1403023EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Height
- 131 mm
- Software Package
- Vijeo Designer run time
- Communication Port Protocol
- Modbus || Modbus TCP/IP || Uni-Telway
- Net Weight
- 0.9 kg
- Depth
- 45 mm
- Memory Description
- 256 MB RAM internal 2 x 13 mm board) || 512 KB NVRAM backup memory
- Processor Name
- CPU RISC 600 MHz
- Integrated Connection Type
- Ethernet TCP/IP 2 RJ45 || COM1 serial link RJ45 RS485 110...115200 bit/s || COM1 serial link RJ45 RS485 187.5 kbit/s || COM2 serial link SUB-D 9 RS232C/RS422/RS485 110...115200 bit/s || COM2 serial link SUB-D 9 RS232C/RS422/RS485 187.5 kbit/s || auxiliary port terminal block || expansion unit fieldbus card || USB 2.0 port 2 USB type A || USB 2.0 port mini B USB
- Port Ethernet
- 10BASE-T/100BASE-TX/1000BASE-T
- Width
- 188 mm
- Type Of Cooling
- natural convection
- Data Storage Equipment
- 1 GB SD card
- Operating System
- Harmony
Specifications
- Range Of Product
- Harmony GTU
- [Us] Rated Supply Voltage
- 12...24 V DC power supply
- Product Or Component Type
- base unit
- Range Compatibility
- Harmony GTU
- Device Short Name
- Premium Box
Dokumente
Data Sheet
HerunterladenCAD Models
Ähnliche Produkte
Zusätzliche Informationen
Schneider Electric’s HMIG3U is a Human-Machine Interface (HMI) device designed to provide an intuitive and easy-to-use interface for industrial automation applications. This device can be used to monitor and control individual process steps or entire production lines with the help of a graphical user interface (GUI). The HMIG3U is equipped with a 5.7-inch color touchscreen display and a powerful 32-bit ARM processor that allows for faster operation. It also features a range of communication options including Ethernet, Modbus, and USB for easy integration into existing systems. Additionally, the device is equipped with an integrated web server for remote access, as well as an SD card slot for data storage.
The HMIG3U is designed to be both reliable and robust, making it suitable for a wide range of industrial applications. It features an IP65 protection rating, meaning it is dust-tight and protected against water jets from any direction. Additionally, the device is resistant to shock and vibration, allowing it to be used in harsh industrial environments. The HMIG3U is also UL approved, meaning it meets the highest safety standards.
The HMIG3U is a great solution for industrial automation applications that require a reliable, easy-to-use, and powerful HMI device. Its intuitive touchscreen display and powerful processor make it well suited for monitoring and controlling complex processes, while its range of communication options and integrated web server allow for easy integration into existing systems. Its robust construction and UL approval ensure it will provide years of reliable performance in even the harshest industrial environments.
