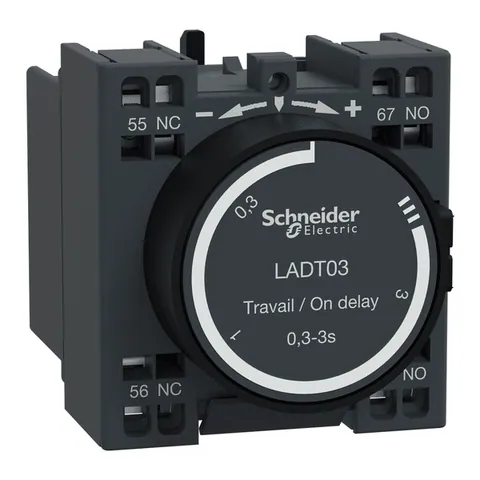

Schneider Electric LADT03

This time delay auxiliary contact block is engineered for compatibility with contactors LC1D and control relays CAD. It includes a configuration of 1 normally open (NO) and 1 normally closed (NC) contact, rated for operational currents up to 10A at 690V AC. The on-delay timer operates within a range of 0.3 to 3 seconds, allowing for precise control in various applications.

Designed for front mounting, this component utilizes spring terminals for reliable connections, accommodating flexible and rigid cables of up to 2.5 mm². The block is constructed to endure a wide operational temperature range of -40 to 70 °C, and features an IP2X protection rating. It maintains high insulation resistance of over 10 MΩ and mechanical durability up to 5 million cycles, ensuring longevity and reliability in normal environments.

The product is compliant with several international standards and certifications, including IEC, UL, and CSA, and adheres to the Green Premium sustainability criteria, ensuring it is free from hazardous substances such as mercury and PVC. Furthermore, its protective treatment meets IEC 60068 specifications for enhanced environmental resilience.
