Schneider Electric
LADT43
1 / 1
Beschreibung
Aktiv Reif

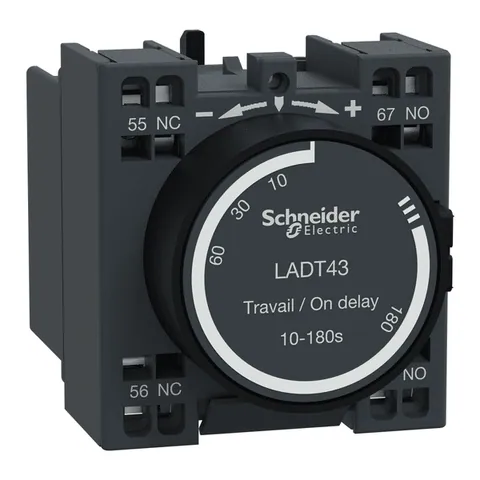

TeSys D time delay auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 1NO+1NC contacts rated up to 10A 690V AC, On-delay setting range 10-180s, connection by spring terminals. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHs/Reach).- Country of Origin
- FR
- Part Number
- LADT43
- Tariff Code
- 8536509065
- UNSPSC
- 39121529
Zahlungsmethoden:
- Bestes Angebot von:
Vertrauenswürdiger Automa.Net Lieferant- Verfügbarkeit:
- 1 Stk.Auf LagerAktualisiert am: 04-11-2024
- Garantie:
- 12 Monate
- Geschätzte Lieferung:
- Auf Anfrage
- Zustand:
- Neuer Überschuss
Neuer Überschuss - Ein neuer, unbenutzter, unbeschädigter Artikel ohne Herstellergarantie. Der Artikel kann ohne Originalverpackung oder in Ersatzverpackung geliefert werden. Wenn vorhanden, könnte die Verpackung geöffnet worden sein.
Sicherer Zahlungsprozess
Rückgabe- und Erstattungsrichtlinien
Versandrichtlinien
Garantiebedingungen
Environment
- Ambient Air Temperature For Operation
- -40-70 °C
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
- Ambient Air Temperature For Storage
- -60-80 °C
- Environmental Characteristic
- normal environment
- Protective Treatment
- TH IEC 60068
- Operating Altitude
- 9842.52 ft (3000 m)
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP110702
- Sustainable Offer Status
- Green Premium product
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- N/A
- Eu Rohs Directive
- Compliant with Exemptions
Complementary
- Non-Overlap Time
- 1.5 ms on de-energisation no overlap between NC and NO contact || 1.5 ms on energisation no overlap between NC and NO contact
- Permissible Short-Time Rating
- 100 A 60 °C 1 s || 120 A 60 °C 500 ms || 140 A 60 °C 100 ms
- Minimum Switching Current
- 5 mA
- Height
- 48 mm
- Protection Type
- gG fuse 10 A
- Insulation Resistance
- > 10 MOhm
- Irms Rated Making Capacity
- 140 A AC || 250 A DC
- Connections - Terminals
- spring terminals 2 2.5-2.5 mm²flexible without cable end || spring terminals 2 2.5-2.5 mm²rigid
- Minimum Switching Voltage
- 17 V
- Mechanical Durability
- 5 Mcycles
- Width
- 44 mm
- Depth
- 61 mm
Specifications
- Product Certifications
- IECEE CB Scheme || UL || CSA || CCC || EAC || UKCA
- [Ith] Conventional Free Air Thermal Current
- 10 A (at 60 °C)
- Standards
- EN/IEC 60947-5-1 || UL 60947-5-1 || CSA C22.2 No 60947-5-1 || GB/T 14048.5
- Timer Type
- on delay
- [Ue] Rated Operational Voltage
- 690 V AC 25...400 Hz
- Range Compatibility
- TeSys D CAD || TeSys D LC1D || TeSys Deca CAD || TeSys Deca LC1D
- Product Or Component Type
- time delay auxiliary contact block
- Product Name
- TeSys Deca
- Range
- TeSys || TeSys Deca
- Mounting Location
- front
- Pole Contact Composition
- 1 NO + 1 NC
- [Ui] Rated Insulation Voltage
- 690 V IEC 60947-5-1 || 600 V UL 60947-5-1 || 600 V CSA C22.2 No 60947-5-1
- [Ie] Rated Operational Current
- 6 A at 120 V AC-15 || 1.04 A at 690 V AC-15 || 0.55 A at 125 V DC-13 || 0.1 A at 600 V DC-13
- Time Delay Range
- 10...180 s
- Auxiliary Contacts Operation
- time delay
