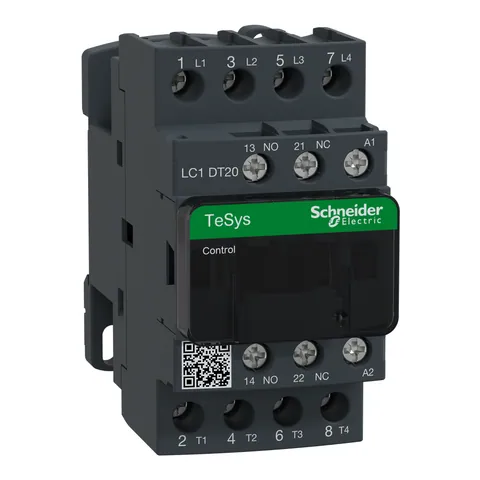

Schneider Electric LC1DT20E7

The TeSys D contactor is engineered for integration into various control systems, suitable for creating motor starters across a wide range of applications. This particular model is configured as a 4-pole contactor, featuring four normally open power contacts rated for 20A resistive loads. It operates with a control circuit voltage of 48 VAC at 50/60 Hz, ensuring compatibility with diverse operational conditions.

Measuring 85 mm in height, 45 mm in width, and 92 mm in depth, this contactor weighs 0.365 kg and can be mounted either on DIN rail or directly to a panel. It includes an auxiliary contact configuration of 1 normally open and 1 normally closed, with a built-in NC contact that meets mirror certification standards. The contactor is designed to accommodate screw clamp terminals for reliable load and auxiliary connections.

With a rated operational voltage of up to 690V AC and 300V DC, the contactor is capable of handling a variety of loads with a maximum operational current of 20A at 60°C. Its mechanical durability is rated for 15 million cycles, ensuring long-term reliability. Additionally, this device meets various international standards, including UL, CSA, IEC, and RoHS regulations, marking it as a compliant product in environmental standards.

For applications requiring higher reliability, it features a mechanical robustness rating capable of withstanding significant vibration and shock, making it suitable for demanding environments.
