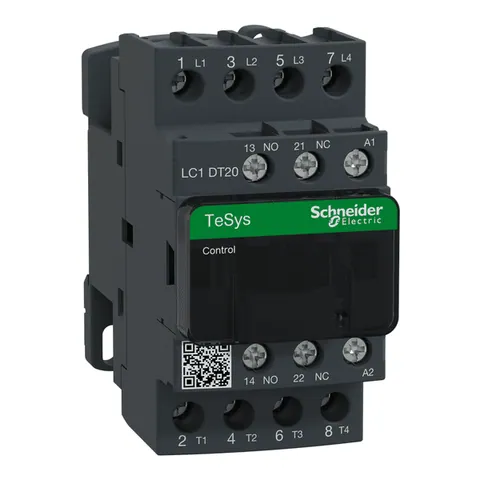

Schneider Electric LC1DT20F7

The TeSys D contactors are engineered for seamless integration into control systems, capable of creating motor starters for diverse applications. These contactors are available in 13 contactor ratings, catering to inductive motor loads up to 150 full-load amps and resistive loads up to 200 amps.

This specific 4-pole IEC contactor can be mounted on DIN rail or directly on a panel. It features four normally open power contacts with a 20A resistive load rating. The contactor is equipped with a 110 VAC 50/60 Hz coil and comes standard with one normally open and one normally closed auxiliary contact. The NC contact is mirror certified.

The contactor utilizes screw clamp terminals for load and auxiliary connections. A comprehensive range of accessories ensures compatibility with most applications. The contactor measures 3.35 inches in height, 1.77 inches in width, and 3.62 inches in depth, weighing 0.80 lbs.

The contactor is certified to UL, CSA, IEC, CCC, EAC, and Marine standards, and meets the requirements of RoHS/REACh, making it a Green Premium product.
