Schneider Electric LC2D65AM7

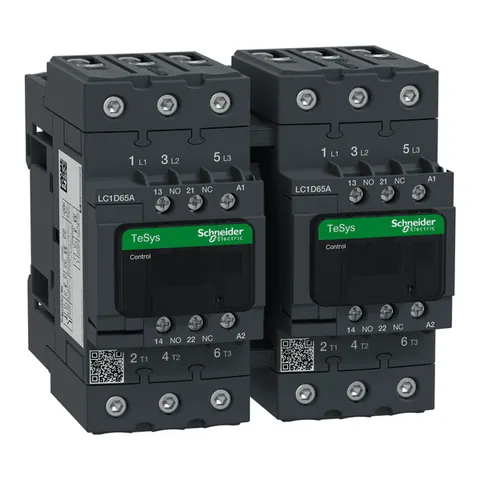

The TeSys D reversing contactor is a 3-pole device designed for motor control applications, capable of handling 65A at 590V AC-3 (30kW@400V). It includes a 220V 50/60Hz AC coil and is equipped with 2NO+2NC auxiliary contacts, with the NC contacts being mirror certified for safety systems. The unit has a compact width of 119mm, suitable for DIN-rail or panel mounting.

This product is designed with a mechanical interlock and pre-wired reversing circuit, ensuring reliability in demanding switching applications. It guarantees high electrical durability, rated for 1.6 million cycles at 65A AC-3 and can withstand vibrations of up to 4 Gn when closed. The contactor operates effectively in ambient temperatures ranging from -40°C to 60°C, with a maximum operating rate of 3600 cycles per hour at 60°C.

Additional features include clear separation between power and control circuits, facilitating easy access to connections. The contactor is built with environmental sustainability in mind, being compliant with multiple standards including IEC, UL, CSA, and RoHS regulations. The protective treatment conforms to IEC 60068-2-30, ensuring operational integrity in various conditions. The device is also designed for high making and breaking capacities, rated at 20 In, and utilizes EverLink BTR screw terminals for reliable power connections.
