LRD3361

Additional Information

Part Number

LRD3361

UNSPSC

39122330

Tariff Code

8536490075

Country of Origin

FR

Environment

Product Certifications

IEC || UL || CSA || CCC || EAC || ATEX INERIS || UKCA

Mechanical Robustness

vibrations6 Gn IEC 60068-2-6 || shocks15 Gn for 11 ms IEC 60068-2-7

Standards

EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || UL 60947-5-1 || CSA C22.2 No 60947-4-1 || CSA C22.2 No 60947-5-1 || GB/T 14048.4 || GB/T 14048.5 || EN 50495

Climatic Withstand

IACS E10

Ambient Air Temperature For Operation

-20-60 °C without derating IEC 60947-4-1

Dielectric Strength

2.2 kV 50 Hz IEC 60947-1

Ip Degree Of Protection

IP20 conforming to IEC 60529

Flame Retardance

V1 conforming to UL 94

Ambient Air Temperature For Storage

-60-70 °C

Contractual warranty

Warranty

18 months

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Environmental Disclosure

ENVPEP080405EN

Sustainable Offer Status

Green Premium product

Toxic Heavy Metal Free

Yes

Reach Regulation

Free of Substances of Very High Concern above the threshold

California Proposition 65

WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Reach Free Of Svhc

Yes

China Rohs Regulation

Pro-active China RoHS declaration (out of China RoHS legal scope)

Circularity Profile

ENVEOLI0804005_V1

Eu Rohs Directive

Compliant

Complementary

Network Frequency

0...400 Hz

Height

81 mm

[Ith] Conventional Free Air Thermal Current

5 A signalling circuit

Auxiliary Contact Composition

1 NO + 1 NC

Connections - Terminals

power circuit screw clamp terminals 1 4-35 mm² flexible without cable end || power circuit screw clamp terminals 1 4-35 mm² flexible with cable end || power circuit screw clamp terminals 1 4-35 mm² solid without cable end || control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end || control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm² solid without cable end

Phase Failure Sensitivity

tripping current 130 % of Ir on two phase, the last one at 0

[Ue] Rated Operational Voltage

1000 V AC 0...400 Hz power circuit IEC 60947-4-1

Associated Fuse Rating

4 A gG for signalling circuit || 4 A BS for signalling circuit

Net Weight

0.51 kg

[Uimp] Rated Impulse Withstand Voltage

6 kV IEC 60947-1

Permissible Current

0.72 A 500 V AC-15 signalling circuit || 0.06 A 440 V DC-13 signalling circuit

Tripping Threshold

1.14 +/- 0.06 Ir IEC 60947-4-1

Tightening Torque

control circuit 1.7 N.m screw clamp terminals || power circuit 9 N.m screw clamp terminals

Control Type

Red push-button stop || Blue push-button reset

Mounting Support

plate, with specific accessories || rail, with specific accessories || under contactor

Width

70 mm

Depth

115 mm

Temperature Compensation

-20-60 °C

Specifications

Network Type

DC || AC

Thermal Protection Adjustment Range

55-70 A

Relay Application

motor protection

Product Or Component Type

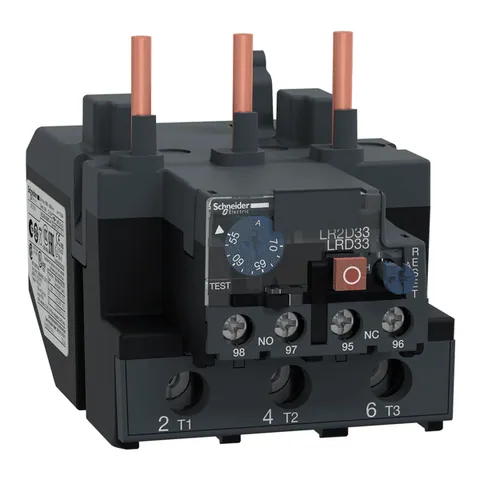

differential thermal overload relay

Product Name

TeSys LRD || TeSys Deca

Thermal Overload Class

class 10A IEC 60947-4-1

Range

TeSys

[Ui] Rated Insulation Voltage

power circuit 1000 V IEC 60947-4-1 || power circuit 600 V CSA || power circuit 600 V UL

Product Compatibility

LC1D95 || LC1D80

Device Short Name

LRD
