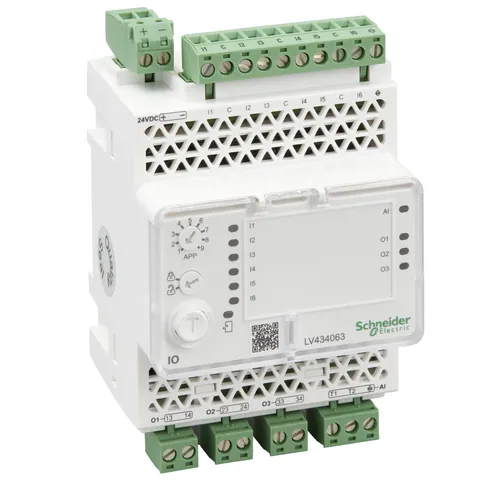

Schneider Electric
LV434063
I/O (input/output) application module, Enerlin'X
- Erhalten Sie bis zu 90 Tage Zahlungsziele von 500+ Lieferanten
- Wiederverkaufsrabatte bis zu 40%!
€266.00
1
Zahlungsmöglichkeiten:
Insgesamt 22 Parts In-Stock von 21 Distributors
Produktbedingungen:
Angebot mit Herstellervorlaufzeit
Lieferung:Auf Anfrage
Bester Preis:
€175.53
Additional Information
- Part Number
- LV434063
- UNSPSC
- 39121601
- Tariff Code
- 8538908180
- Country of Origin
- ID
Environment
- Shock Resistance
- 1000 m/s²
- Ambient Air Temperature For Operation
- -20-70 °C
- Pollution Degree
- 3
- Flame Retardance
- V0 conforming to UL
- Ambient Air Temperature For Storage
- -40-85 °C
- Relative Humidity
- 5-85 %
- Ip Degree Of Protection
- connectors IP2X || front panel IP4X || other parts IP3x
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1510008EN
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- ENVEOLI1510008_V1
- Eu Rohs Directive
- Compliant with Exemptions
Complementary
- Product Certifications
- FCC || GOST || CE || cULus
- Input Type
- digital state 1 19.8-25.2 V - DC - 6.1-8.8 mA || digital state 0 0-19.8 V - DC - 0-0 mA
- [Us] Rated Supply Voltage
- 24 V DC - 20...10 %
- Connections - Terminals
- screw terminal block
- Height
- 116 mm
- Standards
- IEC 60947-6-2 || UL 60950 || IEC 60950 || UL 508
- Number Of Outputs
- 3 digital
- Mounting Support
- 35 mm DIN rail
- Cable Length
- 10 m
- Electromagnetic Compatibility
- electrostatic discharge immunity test EN/IEC 61000-4-2 || immunity to radiated fields 10 V/m EN/IEC 61000-4-3 || surge immunity test EN/IEC 61000-4-5
- Vibration Frequency
- 5-8.4 Hz
- Time Delay
- 0...20 s
- Number Of Inputs
- 6-6 digital || 1-1 analog
- Net Weight
- 229.5 g
- Output Type
- digital 250 V - AC - 5 A
- Communication Network Type
- Universal Logic Plug 2 RJ45 connectors
- Current Consumption
- 165 mA
- Control Type
- by software
- Mounting Mode
- by clips
- Width
- 71.7 mm
- Depth
- 70.6 mm
Specifications
- Range Compatibility
- Masterpact MasterPact MTZ || Masterpact MasterPact NT || Masterpact MasterPact NW || ComPact ComPact NSX || ComPact ComPact NS630b...1600 || ComPact ComPact NS1600b...3200 || PowerPact PowerPact J || PowerPact PowerPact L || PowerPact PowerPact H || PowerPact PowerPact P || PowerPact PowerPact R
- Product Or Component Type
- I/O module
- Product Name
- Enerlin'X IO
- Device Short Name
- I/O
