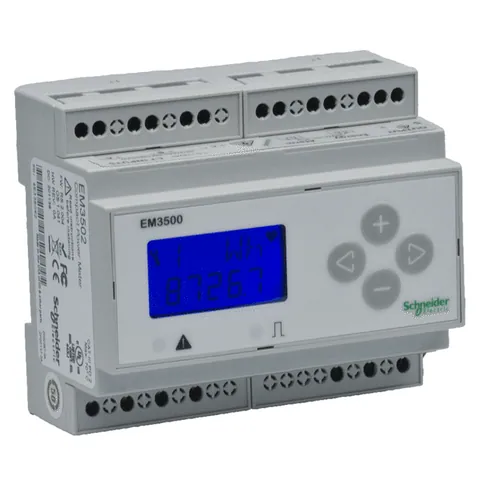

METSEEM3561A

Additional Information

Part Number

METSEEM3561A

UNSPSC

39121032

Country of Origin

US

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Reach Regulation

Reference contains Substances of Very High Concern above the threshold

California Proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation

Product out of China RoHS scope. Substance declaration for your information.

Eu Rohs Directive

Compliant with Exemptions

Complementary

Network Frequency

60 Hz || 50 Hz

Communication Port Support

screw terminal block RS485

[Ue] Rated Operational Voltage

90...347 V AC 50/60 Hz between phase and neutral UL || 156...600 V AC 50/60 Hz between phases UL || 90...300 V AC 50/60 Hz between phase and neutral CE || 125...300 V DC

Standards

CSA C22.2 No 14-05 || IEC 61010-1 || UL 508

Mounting Support

DIN rail

Power Consumption In Va

5-5 VA 347 V AC between phase and neutral) || 5-5 VA 600 V AC between phases)

Product Certifications

CE IEC 61010 || cULus UL 508

Type Of Measurement

active and reactive power total || active and reactive power per phase || apparent power total || apparent power per phase || power factor total || power factor per phase || peak demand power || current || voltage || frequency

Communication Port Protocol

BACnet MS/TP 9600 bauds...115200 bauds (automatic detection) - 2-wire

Communication Service

total cumulated energy || total cumulated active energy

Ride-Through Time

100 ms 120 V AC

Display Digits

5

Number Of Inputs

2 pulse

Tamperproof Of Settings

protected by access code

Measurement Current

20-5000 A

Information Displayed

status and alert || communication with system || input/output status || error || Tx activity || Rx activity || instant power per usage

Function Available

fixed or rolling block || external synchronisation to communication

Mounting Mode

by screws || clip-on

Local Signalling

Red LED threshold reached || Green flashing LED output signal

Power Consumption In W

3 W 300-300 V

Measurement Accuracy

power +/- 0.5 % || energy +/- 0.5 %

Technology Type

electronic

Poles Description

3P + N

Data Recording

energy consumption logs

Analogue Input Type

Rogowski coil 50...5000 A

Display Type

Backlit LCD

Device Application

sub billing || partial meter

Accuracy Class

class 0.5S power IEC 62053-22 || class 0.5S energy IEC 62053-22 || class 0.5S power ANSI C12.20 || class 0.5S energy ANSI C12.20

Rated Voltage

90-347 V

Environment

Ambient Air Temperature For Operation

-30-70 °C

Height

91 mm

9 Mm Pitches

12

Color

dark grey

Ambient Air Temperature For Storage

-40-85 °C

Relative Humidity

0-95 %

Width

107 mm

Depth

59 mm

Specifications

Product Or Component Type

energy meter

Product Name

PowerLogic EM3500

Range

PowerLogic

Device Short Name

EM3561A

Metering Type

current I1, I2, I3, Iavg || peak demand power PM, QM, SM || demand power P, Q, S || voltage U21, U32, U13, V1, V2, V3
