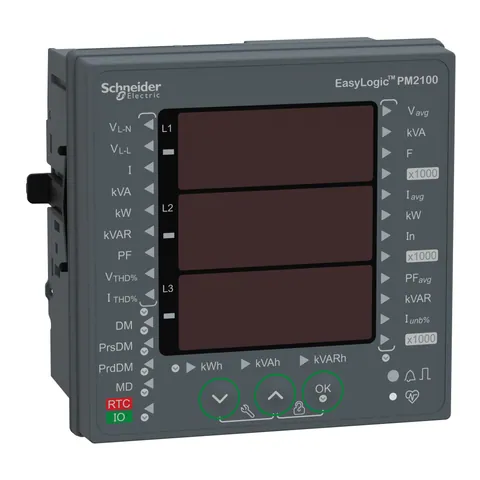

Schneider Electric METSEPM2120
EasyLogic PM2120, Power & Energy meter, up to the 15th harmonic, LED display, RS485, class 1
1 / 1
Katalogbild des Herstellers
Produktbeschreibung
Lebenszyklus:
The Schneider Electric EasyLogic PM2120 is a robust power & energy meter that boasts a 96mm x 96mm bezel size with a 3-row, red LED display. This device is compliant with IEC 62053-21 standards and measures active energy with an accuracy class of 1.0. It can measure all three vectors of power and energy, including total harmonic distortion up to the 15th harmonic order.
This meter operates in either 50Hz or 60Hz network frequency and accepts universal control power voltages ranging from 44V to 300V. It supports a rated current of 1A or 5A input and can be configured for single phase, two phase, or three phase applications.
With RS485 communication over Modbus RTU protocol, this meter is versatile and easy to integrate into your system. Its dimensions are 3.78in (96mm) in width, 2.16in (54mm) in depth, and 3.78in (96mm) in height, with a weight of 10.58oz (300g).
Anfrage senden
Zahlungsmethoden:
Angebotsdetails
- Bestes Angebot von:
Vertrauenswürdiger Lieferant — Deutschland, Mitglied seit 2024- Verfügbarkeit:
- 1 Stk.Auf LagerAktualisiert am: 04-09-2026
- Garantie:
- 24 Monate
- Zustand:
- Überholte
Überholte - Ein generalüberholter Artikel, der vom Hersteller oder einem zertifizierten Techniker geprüft, gereinigt und repariert wurde, um wieder vollständig funktionsfähig zu sein. Der Artikel befindet sich in ausgezeichnetem Zustand und ist voll funktionsfähig.
Der Verkäufer ist verantwortlich für den Versand des Produkts und die Rechnungsstellung
Spezifikationen
- Marke
- Schneider Electric
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1510002
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
