Schneider Electric
NSYMR810

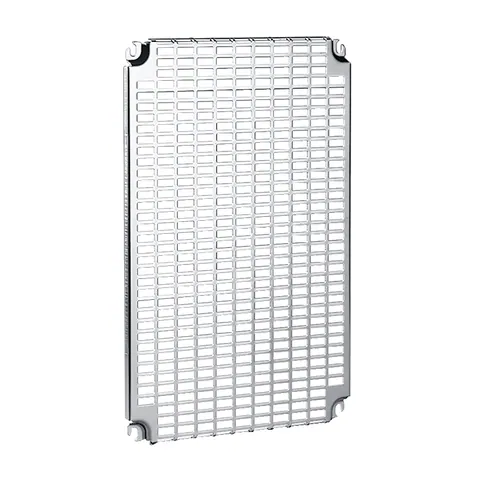

Monobloc perforated plates H800xW1000mm with universal perforations 11x26mm
- Erhalten Sie bis zu 90 Tage Zahlungsziele von 500+ Lieferanten
- Wiederverkaufsrabatte bis zu 40%!
£121.62
1
Zahlungsmöglichkeiten:
Insgesamt 12 Parts In-Stock von 13 Distributors
Produktbedingungen:
Angebot mit Herstellervorlaufzeit
Lieferung:Auf Anfrage
Bester Preis:
€61.74
Additional Information
- Part Number
- NSYMR810
- UNSPSC
- 39121323
- Tariff Code
- 7326908688
- Country of Origin
- FR
Complementary
- Cut-Out Dimensions
- 11 x 26 mm
- Number Of Slots
- 1519
- Width
- 951 mm
- Height
- 751 mm
- Variant Particularity
- installation in rear of enclosure
- Thickness
- 2 mm
- Net Weight
- 5.28 kg
- Depth
- 15 mm
- Fixing Mode
- screwed on backstuds M8 || by fixing element
Specifications
- Enclosure Nominal Dimensions
- H: 800 mm W: 1000 mm
- Range Compatibility
- Spacial Spacial S3D || Spacial Spacial CRN || Spacial Spacial S3X || Thalassa Thalassa PLM
- Material
- steel
- Accessory / Separate Part Category
- mounting accessory
- Surface Finish
- zinc coated
- Quantity Per Set
- set of 1
- Product Or Component Type
- mounting plate
- Device Application
- multi-purpose
- Mounting Plate Description
- Telequick perforated
- Range
- Spacial
- Mounting Location
- step slide || direct fixing on backstuds
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Circularity Profile
- N/A
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2202003EN
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Reach Free Of Svhc
- Yes
Contractual warranty
- Warranty
- 18 months
