Schneider Electric

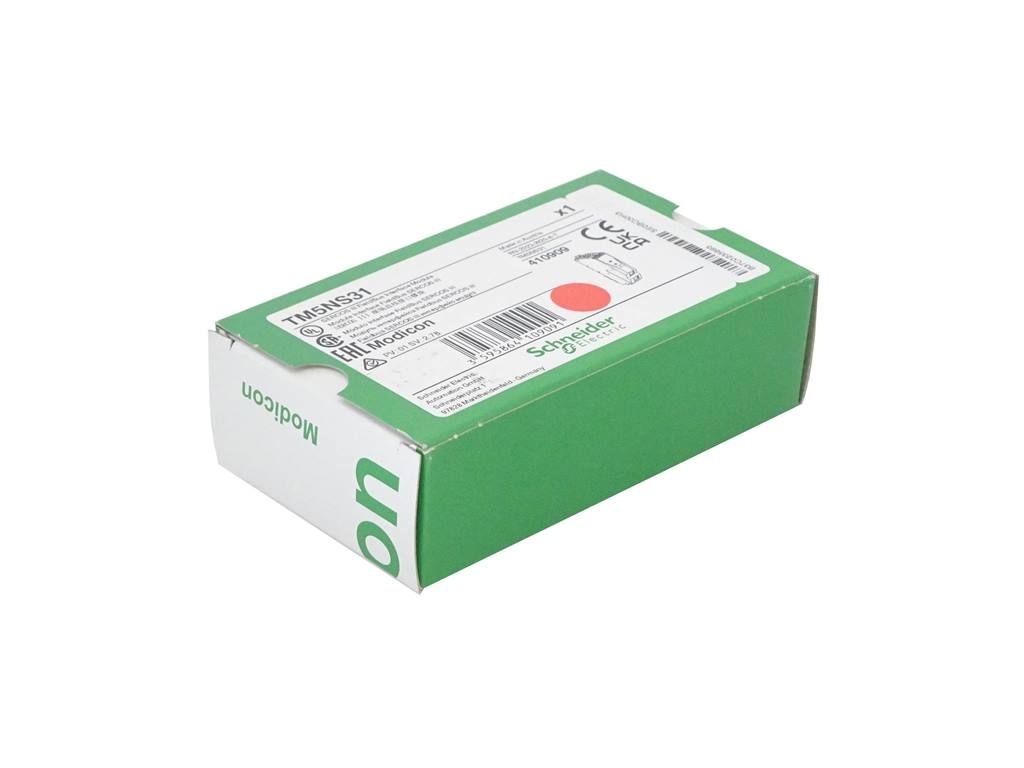

TM5NS31
communication module, Modicon TM5, fieldbus interface, Sercos 3
- Erhalten Sie bis zu 90 Tage Zahlungsziele von 500+ Lieferanten
- Wiederverkaufsrabatte bis zu 40%!
€9,999,999.00
1
Zahlungsmöglichkeiten:
Insgesamt 75 Parts In-Stock von 32 Distributors
Produktbedingungen:
Angebot mit Herstellervorlaufzeit
Lieferung:Auf Anfrage
Bester Preis:
€129.33
Additional Information
- Part Number
- TM5NS31
- UNSPSC
- 32151703
- Tariff Code
- 8538908180
- Country of Origin
- AT
Environment
- Resistance To Electromagnetic Fields
- 1 V/m 2...2.7 GHz IEC 61000-4-3 || 10 V/m 80 MHz...2 GHz IEC 61000-4-3
- Disturbance Radiated/Conducted
- CISPR 11
- Electromagnetic Compatibility
- EN/IEC 61000-4-6
- Surge Withstand
- 0.5 kV differential mode IEC 61000-4-5 || 1 kV common mode IEC 61000-4-5
- Resistance To Electrostatic Discharge
- 4 kV on contact IEC 61000-4-2 || 8 kV in air IEC 61000-4-2
- Resistance To Fast Transients
- 1 kV IEC 61000-4-4 I/O) || 1 kV IEC 61000-4-4 shielded cable) || 2 kV IEC 61000-4-4 power lines)
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1511025EN
- Sustainable Offer Status
- Green Premium product
- Pvc Free
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1511025EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Net Weight
- 0.03 kg
- Current Consumption
- 350 mA 5 V DC, base
- Device Composition
- interface module || bus base ordered separately || power supply ordered separately || terminal block ordered separately
- Integrated Connection Type
- Ethernet/IP, 2 RJ45 connectors Sercos, 100 Mbit/s
- Maximum Power Dissipation In W
- 1.75 W
- Color
- White
- Local Signalling
- 1 LED green/red STAT || 1 LED green/red Sercos III || 1 LED green Sercos III port 1 || 1 LED green Sercos III port 2
- Range Compatibility
- Modicon LMC078
- Product Compatibility
- motion controller
Specifications
- Range Of Product
- Modicon TM5
- Product Or Component Type
- Sercos III communication module
- Physical Interface
- RJ45
