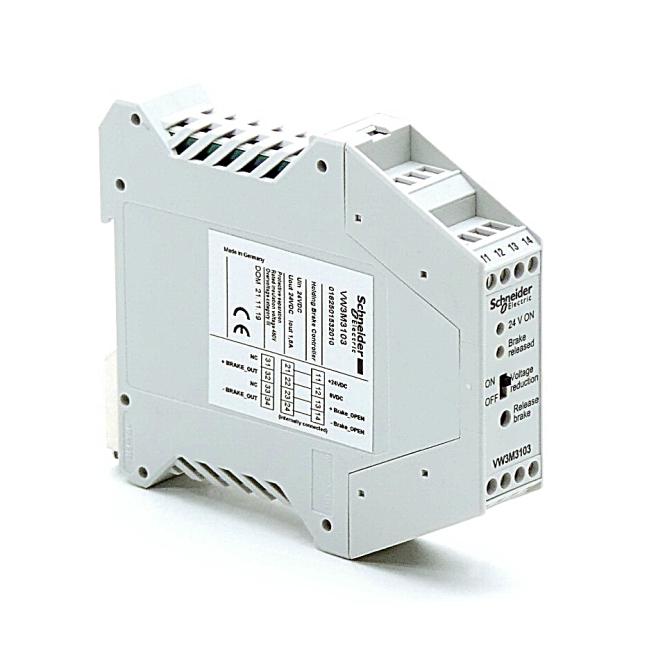

Schneider Electric VW3M3103

"This an holding brake controller dedicated to Lexium servo drives." "It is designed to provide a control logic. It releases the brake when power is supplied to the servo motor and immobilizes the servo motor shaft (stationary)." "It releases the brake when power is supplied to the servo motor and immobilizes the servo motor shaft when it is stationary." "Its power supply voltage limits are 19.2V to 30V, its input current is 0.5 A + brake nominal current, its maximum power consumption is 50W." "Its output voltage is 17V to 19V DC or 23V to 25V DC before power reduction, its maximum braking current is 1.6A, and time before voltage reduction is 1000ms." "It weighs 0.600kg." "It is designed to provide a control logic. It releases the brake when power is supplied to the servo motor and immobilizes the servo motor shaft (stationary)." "It is compliant with Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU." "It is compatible with Easy Lexium 16 servo drives." "It is sold by one piece." "It is mounted on 55mm symmetrical DIN rail." "Easy Lexium 16 servo drive and BCH16 servo motor combinations are specially designed for easy integration & commissioning in your machine." "Easy Lexium 16 servo drive and BCH16 servo motor combinations provide the right level of performance for the majority of simple motion control machines."
