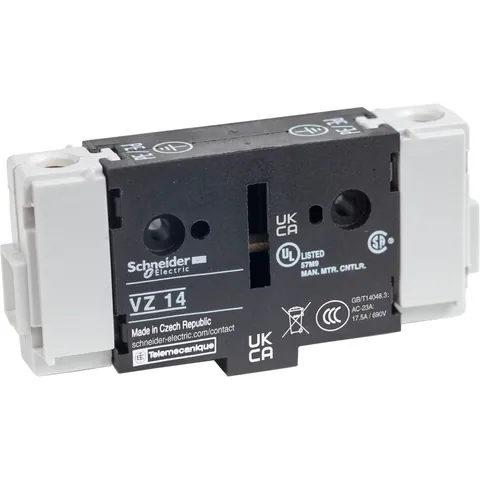

Additional earthing block,TeSys Control,40A,for V02-V2
- Erhalten Sie bis zu 90 Tage Zahlungsziele von 500+ Lieferanten
- Wiederverkaufsrabatte bis zu 40%!
€10.08
1
Zahlungsmöglichkeiten:
Insgesamt 294 Parts In-Stock von 29 Distributors
Produktbedingungen:
Angebot mit Herstellervorlaufzeit
Lieferung:Auf Anfrage
Bester Preis:
€2.93
Additional Information
- Part Number
- VZ14
- UNSPSC
- 39122233
- Tariff Code
- 8536904000
- Country of Origin
- CZ
Environment
- Product Certifications
- UL || GL || CSA || UKCA
- Ambient Air Temperature For Operation
- -20-50 °C
- Standards
- IEC 60947-3
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
- Protective Treatment
- TC
- Mechanical Robustness
- vibrations 10...150 Hz 5 gn) IEC 60068-2-6 || shocks 11 ms 15 gn) IEC 60068-2-27
- Fire Resistance
- 960 °C IEC 60695-2-1
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2211001
- Sustainable Offer Status
- Green Premium product
- Pvc Free
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- N/A
- Eu Rohs Directive
- Compliant with Exemptions
- Halogen Content Performance
- Halogen free product
Complementary
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz
- Height
- 74 mm
- [Ith] Conventional Free Air Thermal Current
- 40 A
- Net Weight
- 0.05 kg
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV
- Mounting Location
- left || right
- Connections - Terminals
- screw clamp terminals
- Width
- 16 mm
- Depth
- 35 mm
Specifications
- Network Frequency
- 50/60 Hz
- Network Type
- AC || DC
- Product Or Component Type
- additional earthing block
- Performance Level
- high performance
- Range
- TeSys
- Contacts Type And Composition
- without
- Product Compatibility
- V0 || V02 || V2 || V01 || V1
- Device Short Name
- VZ
