Schneider Electric
XALD04H7

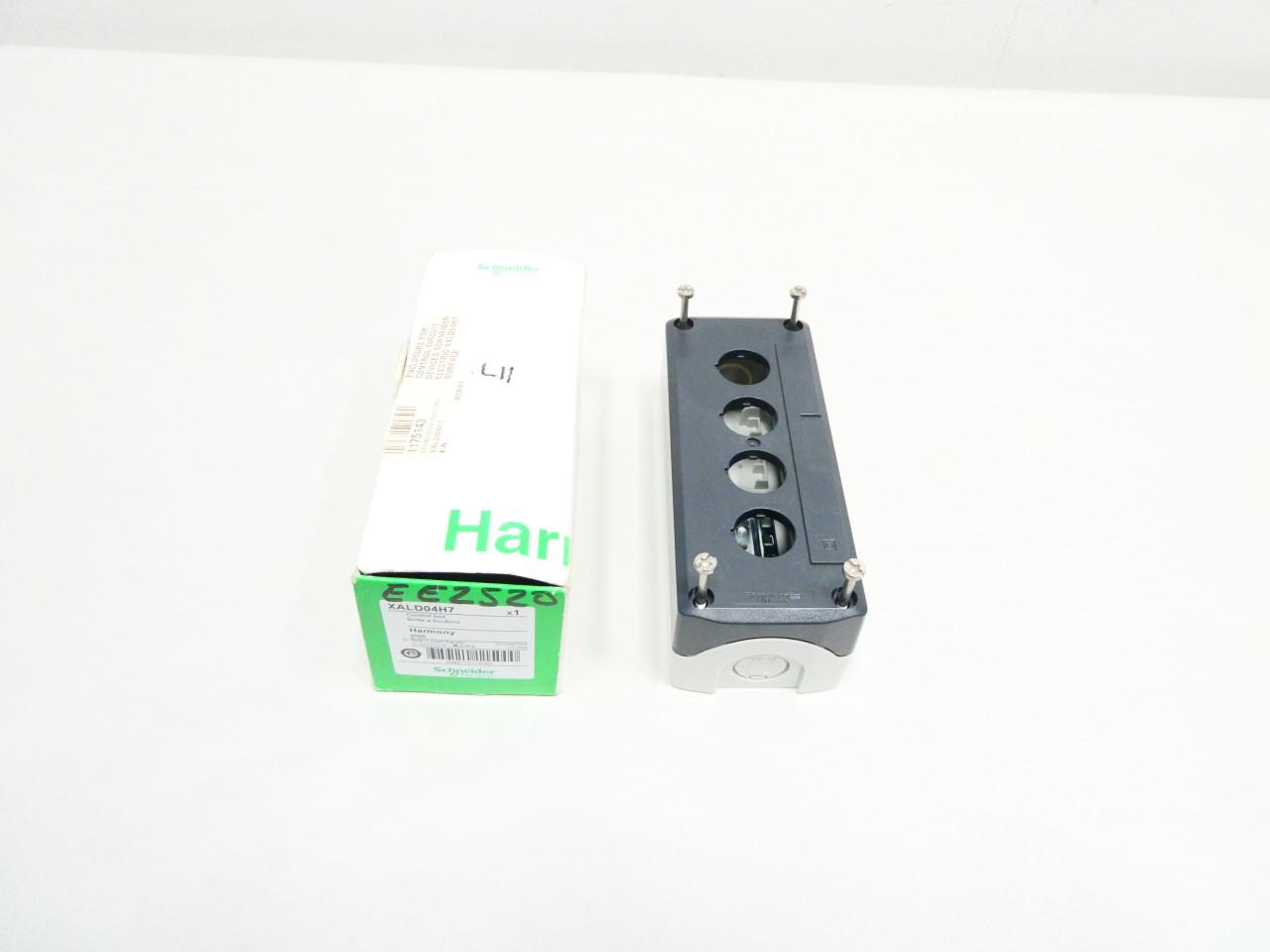

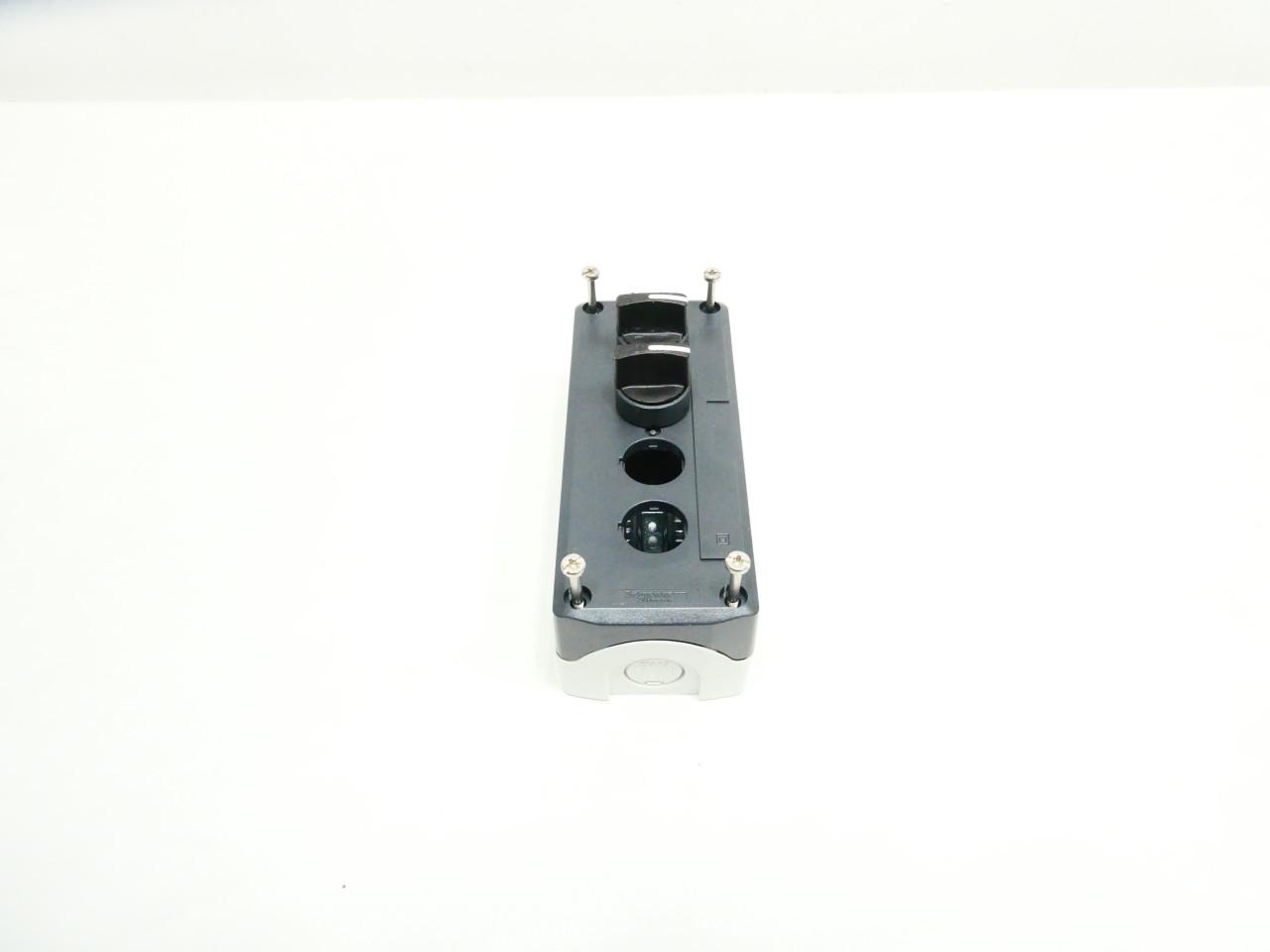

Empty control station, Harmony XALD, XALK, plastic, dark grey lid, light grey base, 4 cut out, UL CSA certified
- Erhalten Sie bis zu 90 Tage Zahlungsziele von 500+ Lieferanten
- Wiederverkaufsrabatte bis zu 40%!
£10.40
1
Zahlungsmöglichkeiten:
Insgesamt 14 Parts In-Stock von 16 Distributors
Produktbedingungen:
Angebot mit Herstellervorlaufzeit
Lieferung:1 - 2 Viele Arbeitstage
Bester Preis:
€10.89
Additional Information
- Part Number
- XALD04H7
- UNSPSC
- 39121565
- Tariff Code
- 8538908180
- Country of Origin
- CZ
Environment
- Product Certifications
- CSA || UL
- Ik Degree Of Protection
- IK03 EN 50102
- Ambient Air Temperature For Operation
- -40-70 °C
- Standards
- UL 508 || JIS C8201-5-1 || EN/IEC 60947-5-5 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1
- Ambient Air Temperature For Storage
- -40-70 °C
- Overvoltage Category
- class II IEC 60536
- Nema Degree Of Protection
- NEMA 13 || NEMA 4X
- Protective Treatment
- TH
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1806010EN
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1806010EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Mounting Of Block
- front mounting || rear mounting
- Number Of Horizontal Rows
- 1
- Main Group
- 4 cut-outs
- Number Of Vertical Rows
- 4
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Assembly Style
- for customer assembly
- Electrical Composition Code
- MR1 || SR1 || SR2 || SF2 || MF2 || MF1 || PF2 || PR1 || PF1 || SF1
- Group Of Product
- UL-CSA grey
Specifications
- Product Destination
- for XB5 Ø 22 mm control and signalling units
- Range Of Product
- Harmony XALD
- Colour Of Base Of Enclosure
- light grey RAL 7035)
- Cable Entry
- 2 knock-outs for cable entry 14-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm
- Product Or Component Type
- empty control station
- Material
- polycarbonate
- Ip Degree Of Protection
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Colour Of Cover
- dark grey RAL 7016)
- Number Of Cut-Out
- 4 cut-outs
- Device Short Name
- XALD
