Beschreibung

Aktiv Reif

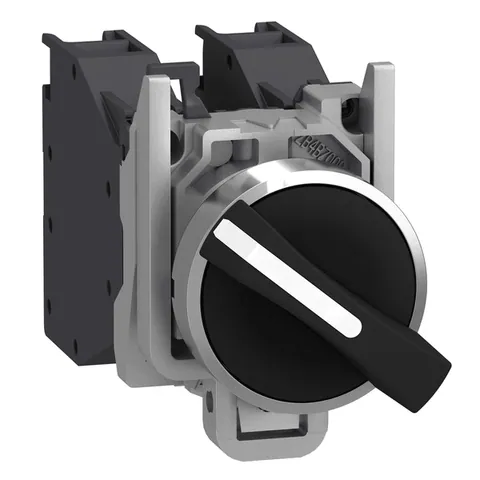

This product is part of the Harmony XB4 - ATEX D range, an offer of Ø 22mm metal pushbuttons, switches and pilot lights for explosive atmosphere. This complete selector switch comes with a black standard handle. This offer is specially designed for explosive atmosphere. It is designed for used in dust zone 21-22 and gas zone 1-2. It has 2 operating positions and operates with a stay-put mechanism. It has 1 NO and 1 NC contact with slow-break operation. This metal selector switch comes with chromium plated metal bezel. This offer is specially designed for applications in Oil and Gas industry as well as Food and beverage, car gas stations etc. It is an IP65 rated product and comes with INERIS 04ATEX9004U certification. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB4 range offers innovative features for simple and efficient use. The Harmony XB4 - ATEX is the most comprehensive explosive Atmospheres range covering most applications.
Country of Origin
FR
Part Number
XB4BD25GEX
Tariff Code
85365080
EAN
3606489485719
UNSPSC
39122217
€130.66
net
1
Zahlungsmethoden:
Bestes Angebot von:
FRVertrauenswürdiger Automa.Net Lieferant
Verfügbarkeit:
1 Stk.
Auf Lager
Aktualisiert am: 09-11-2024
Geschätzte Lieferung:
Auf Anfrage
Zustand:
Neu versiegelt ab Werk
Neu versiegelt ab Werk - Ein brandneuer, unbenutzter, ungeöffneter, unbeschädigter Artikel in seiner original vom Hersteller versiegelten Verpackung.
Insgesamt 12 Parts In-Stock von 10 Distributors
Lieferung von:
FR
FR
DE
DE
GB
GB
NL
NL
ES
ES
IT
IT
PL
PL
CZ
CZ
RO
RO
Sicherer Zahlungsprozess
Rückgabe- und Erstattungsrichtlinien
Versandrichtlinien
Garantiebedingungen

Verfügbare Angebote (9)

XB4BD25GEX product image
Schneider Electric

XB4BD25GEX

Zustand:
Neu versiegelt ab Werk
Verfügbar:
1 Stk.
Auf Lager
Aktualisiert am: 09-11-2024
Angebot von:
DEVertrauenswürdiger Automa.Net Lieferant
Geschätzte Lieferung:
Auf Anfrage
1
€130.66
net
XB4BD25GEX product image
Schneider Electric

XB4BD25GEX

Zustand:
Neu versiegelt ab Werk
Verfügbar:
1 Stk.
Auf Lager
Aktualisiert am: 09-11-2024
Angebot von:
GBVertrauenswürdiger Automa.Net Lieferant
Geschätzte Lieferung:
Auf Anfrage
1
£162.29
net
XB4BD25GEX product image
Schneider Electric

XB4BD25GEX

Zustand:
Neu versiegelt ab Werk
Verfügbar:
1 Stk.
Auf Lager
Aktualisiert am: 09-11-2024
Angebot von:
NLVertrauenswürdiger Automa.Net Lieferant
Geschätzte Lieferung:
Auf Anfrage
1
€186.65
net
XB4BD25GEX product image
Schneider Electric

XB4BD25GEX

Zustand:
Neu versiegelt ab Werk
Verfügbar:
1 Stk.
Auf Lager
Aktualisiert am: 09-11-2024
Angebot von:
ESVertrauenswürdiger Automa.Net Lieferant
Geschätzte Lieferung:
Auf Anfrage
1
€186.65
net
XB4BD25GEX product image
Schneider Electric

XB4BD25GEX

Zustand:
Neu versiegelt ab Werk
Verfügbar:
1 Stk.
Auf Lager
Aktualisiert am: 09-11-2024
Angebot von:
ITVertrauenswürdiger Automa.Net Lieferant
Geschätzte Lieferung:
Auf Anfrage
1
€186.65
net
Angebot mit Herstellervorlaufzeit
Lieferung:Auf Anfrage
Bester Preis:
€60.27

Complementary

Contacts Usage
standard contacts
Height
30 mm
Embedding Depth
58 mm
Fixing Center
>= 30 x 40 mm support panel) 1-6 mm
Positive Opening
with
[Ith] Conventional Free Air Thermal Current
10 A IEC 60947-5-1
Shape Of Signaling Unit Head
round
Marking
II 2 GD || Ex tb IIIC Db || Ex db eb IIC Gb
Net Weight
0.115 kg
Connections - Terminals
screw clamp terminals, 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 2.5 mm² without cable end IEC 60947-1
[Ui] Rated Insulation Voltage
415 V
[Ie] Rated Operational Current
1.9 A 380 V, AC, A600 IEC 60947-5-1 || 3 A 240 V, AC, A600 IEC 60947-5-1 || 6 A 120 V, AC, A600 IEC 60947-5-1 || 0.27 A 250 V, DC, Q300 IEC 60947-5-1 || 0.55 A 125 V, DC, Q300 IEC 60947-5-1 || 2.87 A 24 V, DC, Q300 IEC 60947-5-1
Contact Operation
slow-break
Operator Position Information
2 positions 90°
Mechanical Durability
5000000 cycles
Width
46.2 mm
Depth
85 mm
Tightening Torque
0.8-1.2 N.m IEC 60947-1
Device Mounting
fixing hole 22.5 mm +/- 0.2 mm IEC 60947-1

Offer Sustainability

Rohs Exemption Information
Yes
Mercury Free
Yes
Environmental Disclosure
ENVPEP1808008EN
Sustainable Offer Status
Green Premium product
Toxic Heavy Metal Free
Yes
Reach Regulation
Free of Substances of Very High Concern above the threshold
California Proposition 65
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc
Yes
Weee
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation
X
Circularity Profile
ENVEOLI1808008EN
Eu Rohs Directive
Pro-active compliance (Product out of EU RoHS legal scope)

Specifications

Range Of Product
Harmony XB4
Dust Zone
zone 21 - 22
Mounting Diameter
22 mm
Type Of Operator
stay put
Product Or Component Type
complete selector switch
Fixing Collar Material
zamak
Gas Zone
zone 1 - 2
Contacts Type And Composition
1 NO + 1 NC
Sale Per Indivisible Quantity
1
Bezel Material
chromium plated metal
Operator Profile
black standard handle
Device Short Name
XB4

Environment

Product Certifications
INERIS 04ATEX9004U
Ambient Air Temperature For Operation
-20-75 °C
Standards
IEC 60079-0:2009 || EN/IEC 60079-1:2009 || IEC 60079-7:2009 || IEC 60079-31:2009 || UL 60079-0 || UL 60079-1 || UL 60079-31 || ANSI/ISA 12.12.01 || CSA C22.2 No 213
Ip Degree Of Protection
IP65 IEC 60529
Ambient Air Temperature For Storage
-40-70 °C
Protective Treatment
TH
