Schneider Electric XCKJ10543

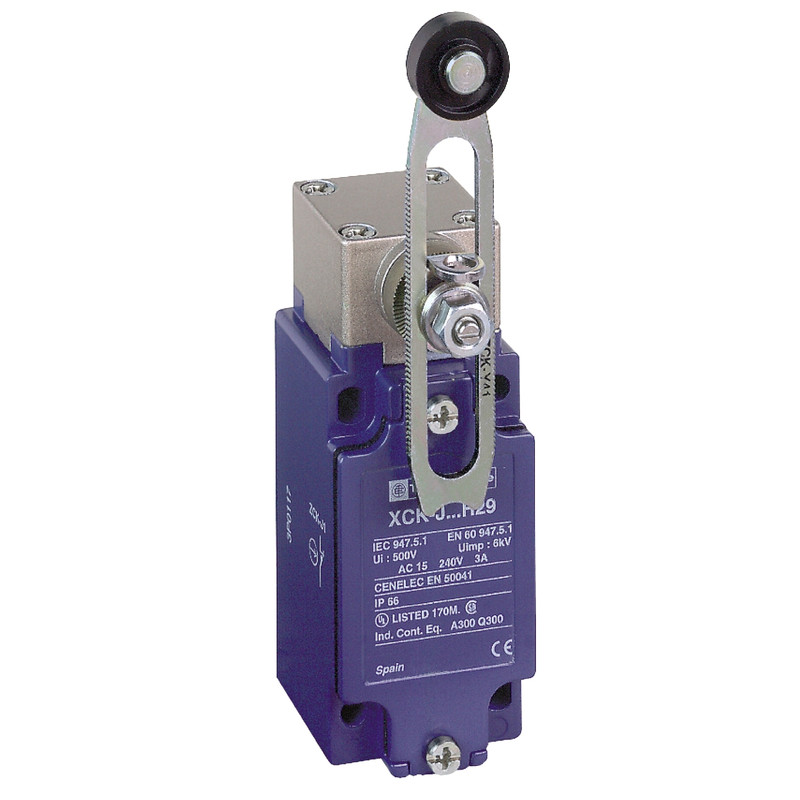

The XC Standard range of limit switches includes this steel roller lever limit switch. This limit switch converts mechanical motion into an electrical control signal and has 1 normally closed + 1 normally opened, snap action contacts without positive opening operation. It provides switch actuation by a 30° cam and supports lateral approach in one or two directions. The movement of the operating head is rotary.

The limit switch features a spring return metal roller lever and screw clamp terminals for electrical connection, as well as a tapped cable gland. It is rated IP66 and IK07 and has a rated operational current of 3A at 240V AC, 0.27A at 250V AC. Its mechanical durability is 30 million operating cycles and electrical durability is 5 million operating cycles.

This limit switch has a fixed type body made of Zamak with dimensions of 40mm (Width) x 44mm (Depth) x 77mm (Height) and weighs 0.485kg. It is suitable for all industrial machine applications such as packaging, materials handling, conveying, machining, food and beverage, service sector, etc.

This product is certified by UL, CCC and CSA and meets UL 508, CENELEC EN 50041, EN 60204-1, IEC 60204-1, CSA C22.2 No 14, EN 60947-5-1 and IEC 60947-5-1 standards. High quality of products and worldwide availability guarantee in a short delivery time.
