Schneider Electric XSDH407339

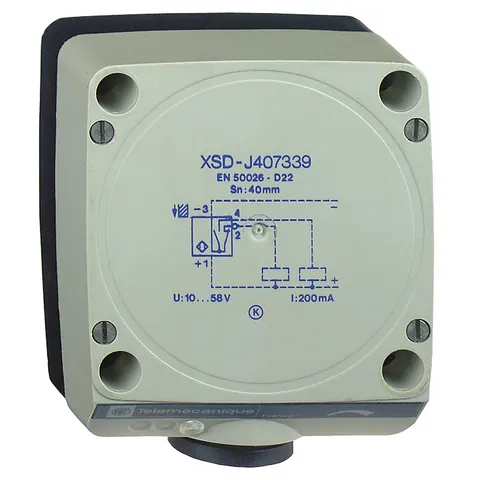

The XSD 80x80x40 inductive proximity sensor is designed for the non-contact detection of metallic objects, which minimizes wear and allows for the detection of delicate or newly painted surfaces. This model is constructed with a plastic enclosure and measures 80mm in width, 80mm in height, and 40mm in depth. It is not suitable for flush mounting and has a nominal sensing distance of 40mm.

It operates within a voltage range of 12 to 48 VDC and features a four-wire configuration with a PNP discrete output, providing both normally open (NO) and normally closed (NC) functions. The sensor has a switching frequency of up to 50 Hz and can handle a switching capacity of 200 mA. The environmental protection rating is IP67, ensuring robust operation in industrial settings.

Additionally, the sensor is equipped with a PG 13.5 cable entry for easy installation. It is certified for compliance with various environmental standards, including RoHS and REACH, making it a sustainable choice for industrial applications. The operational temperature range is from -25°C to 70°C, allowing for versatility in various environments. This product is marked with CE certification and is recognized as a Green Premium product due to its sustainable attributes.
