Schneider Electric XUFN12301

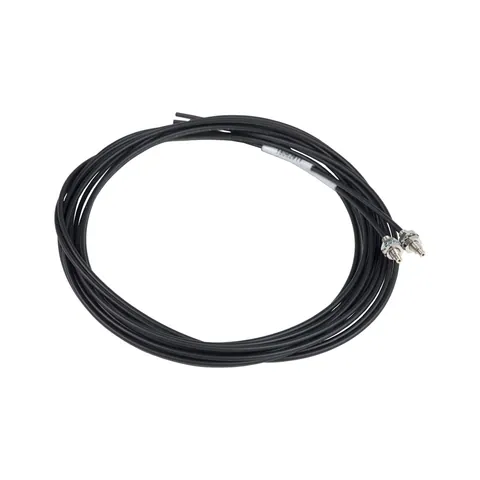

This product falls under the XU range of photoelectric sensors, specifically designed with an XUF fibre structure. The sensor operates on a thru-beam detection principle, allowing for precise sensing capabilities at a nominal distance of 0.2 m, as well as options of 0.2 m XUFZ02 and 1.5 m XUFZ01. It includes an M2.6 x 0.45 standard thread end fitting for easy installation and is equipped with a single Ø1 mm optic fibre core.

The sensor is rated IP64 and IP641, ensuring it is suitable for various industrial environments. Constructed from PMMA with a PE sheath, the optic fibre has a length of 2 m and an external diameter of 2.2 mm, with a total weight of 0.03 kg. This device is particularly applicable in material handling, packaging, labelling, assembly, lifts, escalators, and food and beverage sectors.

Performance specifications highlight operational capabilities within an ambient temperature range of -25 to 60 °C and storage conditions from -40 to 80 °C. The sensor demonstrates resilience against shocks of up to 30 gn for 11 ms and can withstand vibrations of +/- 1.5 mm at 10-55 Hz. The minimum bending radius is set at 25 mm, ensuring flexibility during installation.

Furthermore, the product complies with various environmental standards, including RoHS directives, and is mercury-free. However, it may expose users to certain chemicals, as indicated by California Proposition 65 warnings.
