Schneider Electric
XVUC28

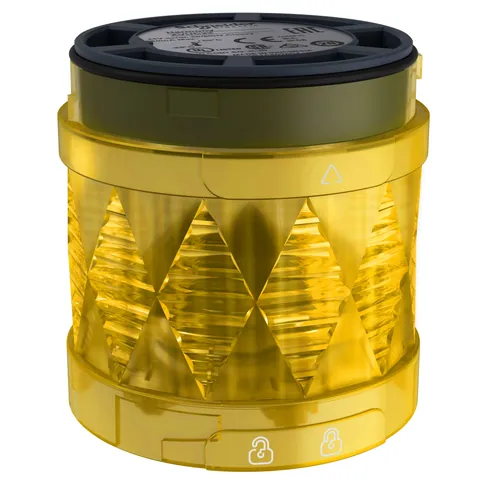

Modular tower light, Harmony XVU, illuminated LED units, yellow, 60mm, steady, IP65, 24V AC DC
- Erhalten Sie bis zu 90 Tage Zahlungsziele von 500+ Lieferanten
- Wiederverkaufsrabatte bis zu 40%!
221,09 zł
1
Zahlungsmöglichkeiten:
Insgesamt 183 Parts In-Stock von 28 Distributors
Produktbedingungen:
Angebot mit Herstellervorlaufzeit
Lieferung:1 - 2 Viele Arbeitstage
Bester Preis:
€18.53
Additional Information
- Part Number
- XVUC28
- UNSPSC
- 32151804
- Tariff Code
- 8531809051
- Country of Origin
- ID
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1403004EN
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1403004EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Complementary
- [Us] Rated Supply Voltage
- 24 V AC/DC
- Material
- PC (polycarbonate) V-2 UL 94
- Current Consumption
- <= 50 mA
- Length
- 50 mm
- Net Weight
- 0.064 kg
- Maximum Power Dissipation In W
- 2.5 W
- Signalling Type
- steady
- Assembly Style
- customer assembly, up to 5 units
Environment
- Product Certifications
- CE
- Ambient Air Temperature For Operation
- -25-50 °C
- Ip Degree Of Protection
- IP65
- Vibration Resistance
- 2 gn
- Ambient Air Temperature For Storage
- -40-70 °C
Specifications
- Range Of Product
- Harmony XVU
- Mounting Diameter
- 60 mm
- Light Source
- LED, yellow
- Product Or Component Type
- modular tower light
- Component Name
- XVU
- Beacon Or Indicator Bank Unit Type
- LED unit
- Device Application
- automotive
Dokumente
Data Sheet
HerunterladenCAD Models
Trace parts
