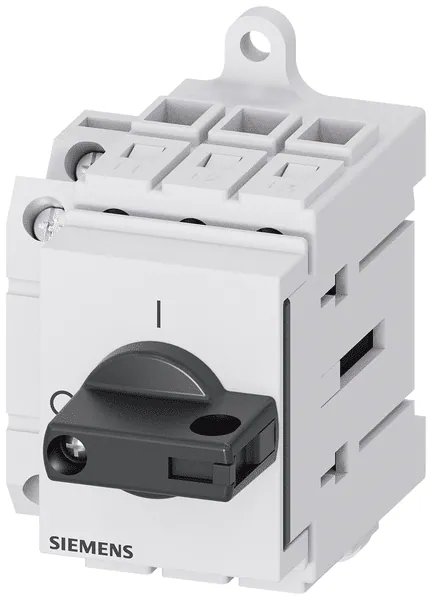

Siemens 3LD3030-1TK11

The Main Switch 3-Pole Rated Load Disconnector 3LD3 is engineered for effective load disconnection in various electrical distribution applications. With a rated current of 16 A and an operating capacity at AC-23 up to 400V, it is capable of handling loads up to 7.5 kW. This device is designed for installation in distribution boards and features a basic switch configuration with a toggle control element in black.

Further, it incorporates an auxiliary switch configuration consisting of 1 normally open contact and 1 normally closed contact. The device is interlockable and can be used as a maintenance/service switch, ensuring reliability and safety in operation. It is categorized with an IP40 degree of protection on the front side, which allows for safe use in a variety of environments.

This unit does not have an integrated motor drive and is not suitable for reversing applications, but it can be mounted on the ground.
