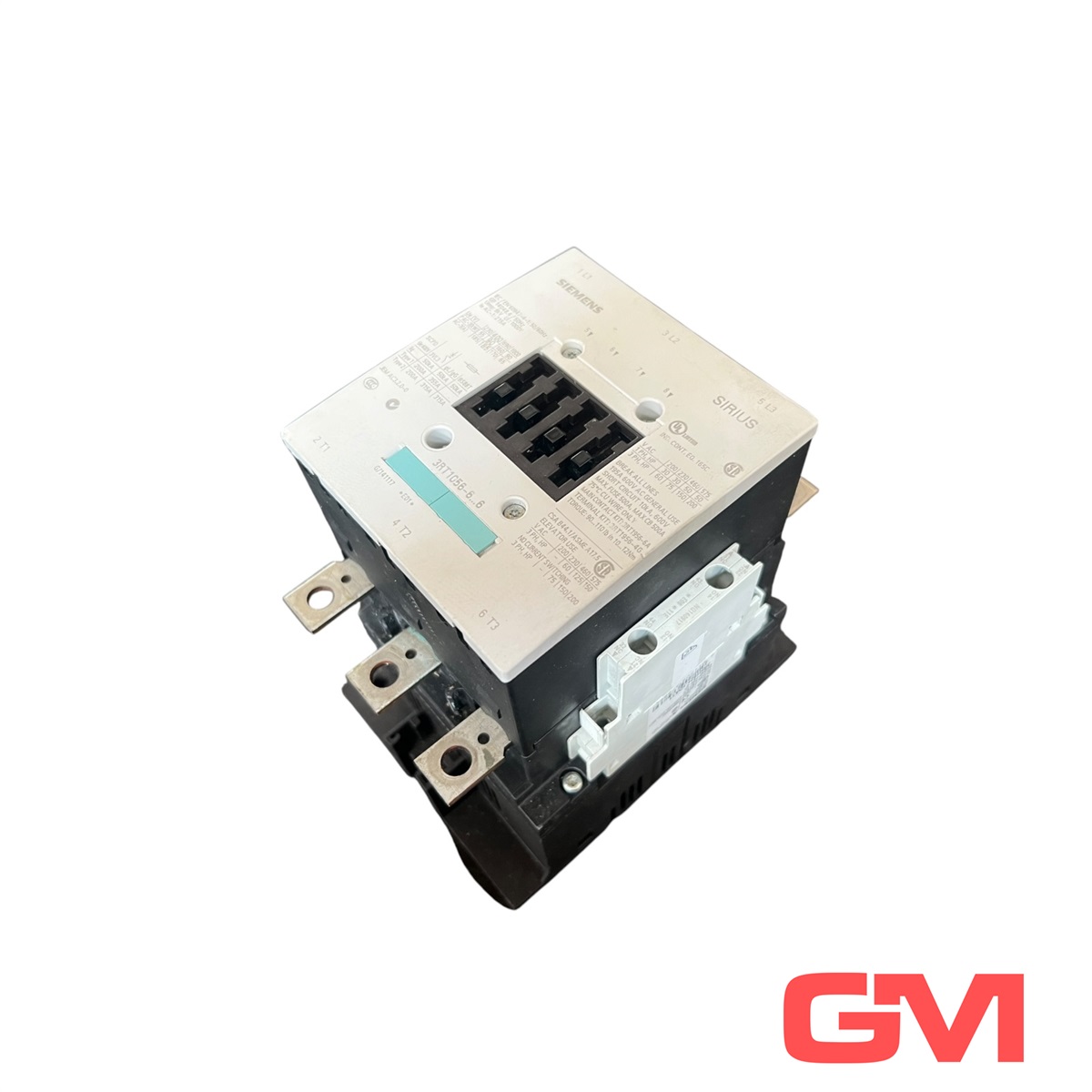

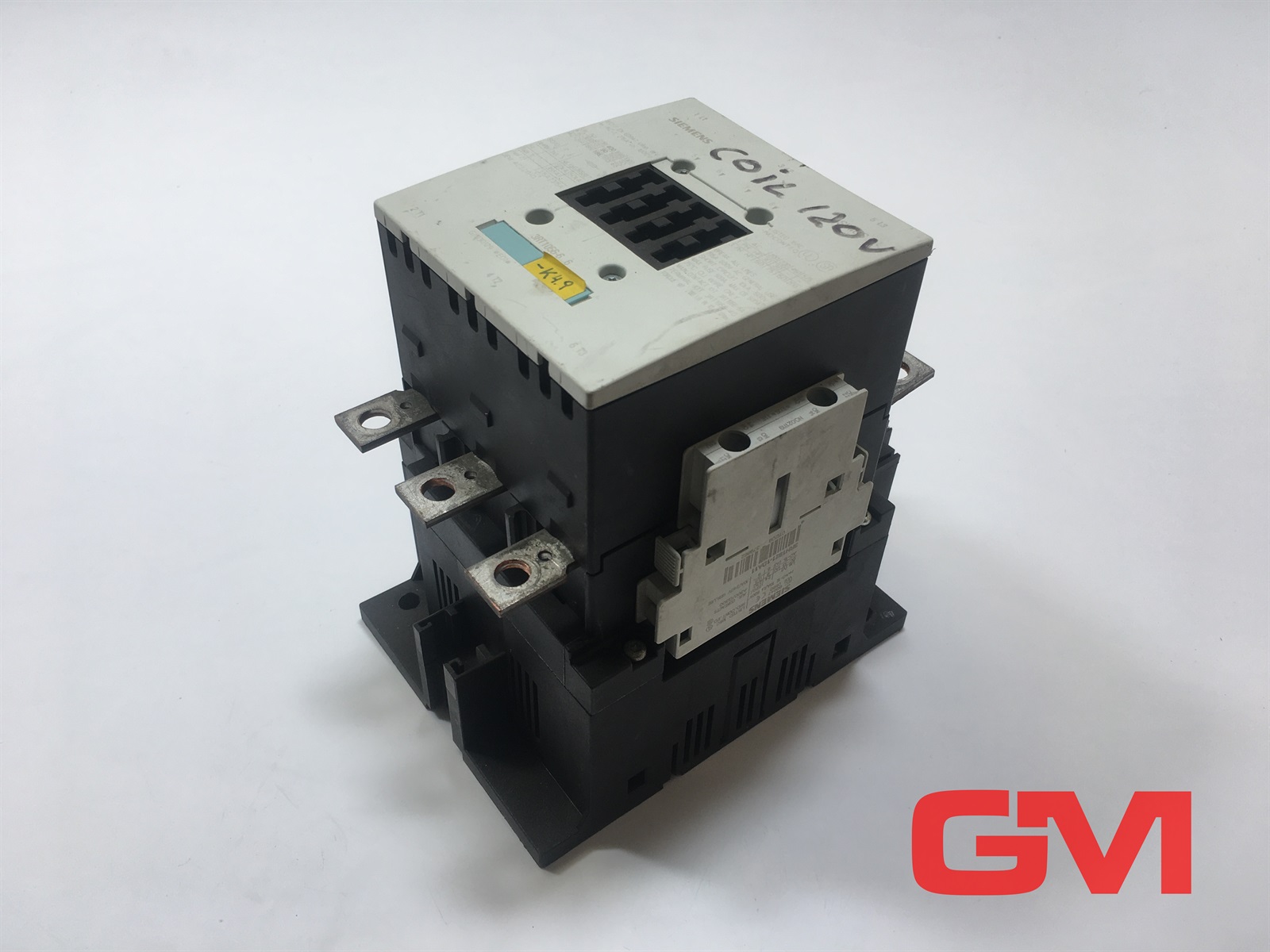

Siemens
3RT1056-6AP36
CONTACTOR S6 185A 220-240VUC 3P BAR
- Erhalten Sie bis zu 90 Tage Zahlungsziele von 500+ Lieferanten
- Wiederverkaufsrabatte bis zu 40%!
€468.00
1
Zahlungsmöglichkeiten:
Insgesamt 643 Parts In-Stock von 58 Distributors
Produktbedingungen:
Angebot mit Herstellervorlaufzeit
Lieferung:Auf Anfrage
Bester Preis:
€231.80
Beschreibung
AktivRoHS-konform
Contactor,IEC,Sirius,Standard 3 Pole,Non-Reversing 220 - 240 AC/DC Coil Frame Size S6,185A Panel Mount 2 NO <(>&<)> 2 NC Auxiliaries No Suppression Lugs (Not Included) Terminals UL File E31519 in Vol.11 Sec. 5Additional Information
- Part Number
- 3RT1056-6AP36
- UPC
- 754554771762
- Tariff Code
- 8536490065
- Country of Origin
- DE
- ETIM
- Group Code : EG000017
- Group Description : Low-voltage Industrial Components
- Class Description : Power contactor, AC switching
- Class Code : EC000066
- Version : 7
Specifications
- Country of Origin
- DE
- Modular version
- true
- Voltage type for actuating
- AC/DC
- Rated operation power NEMA
- 110.3248125 kW
- Rated operation power at AC-3, 400 V
- 90 kW
- Rated operation power at AC-4, 400 V
- 90 kW
- Rated control supply voltage Us at DC
- 220 V
- Rated operation current Ie at AC-1, 400 V
- 215 A
- Rated operation current Ie at AC-3, 400 V
- 185 A
- Rated operation current Ie at AC-4, 400 V
- 160 A
- Rated control supply voltage Us at AC 50HZ
- 220 V
- Rated control supply voltage Us at AC 60HZ
- 220 V
- Number of main contacts as normally open contact
- 3
- Number of auxiliary contacts as normally open contact
- 2
- Number of auxiliary contacts as normally closed contact
- 2
- Type of electrical connection of main circuit
- Rail connection
