Siemens
3RT2035-3KB40

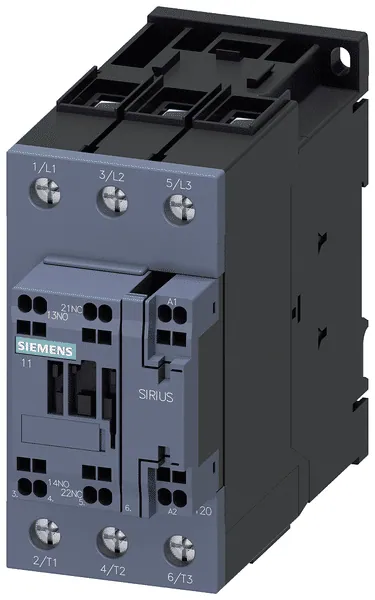

CONTACTOR S2 40A 24VDC SPRING 1NO/1NC
- Erhalten Sie bis zu 90 Tage Zahlungsziele von 500+ Lieferanten
- Wiederverkaufsrabatte bis zu 40%!
€117.00
1
Zahlungsmöglichkeiten:
Insgesamt 38 Parts In-Stock von 22 Distributors
Produktbedingungen:
Angebot mit Herstellervorlaufzeit
Lieferung:Auf Anfrage
Bester Preis:
€84.23
Beschreibung
AktivRoHS-konform
Coupling cont.,AC3 18.5KW/400V, 1NO+1NC, 24V DC, with varistor, 3-pole, size s2, spring-type terminalAdditional Information
- Part Number
- 3RT2035-3KB40
- UPC
- 804766167256
- Tariff Code
- 8536490080
- Country of Origin
- DE
- ETIM
- Group Code : EG000017
- Group Description : Low-voltage Industrial Components
- Class Description : Power contactor, AC switching
- Class Code : EC000066
- Version : 7
Specifications
- Modular version
- true
- Voltage type for actuating
- DC
- Rated control supply voltage Us at DC
- 24 V
- Rated operation power NEMA
- 22.064962499 kW
- Country of Origin
- DE
- Rated operation power at AC-3, 400 V
- 18.5 kW
- Rated operation current Ie at AC-1, 400 V
- 60 A
- Rated operation current Ie at AC-3, 400 V
- 41 A
- Rated operation current Ie at AC-4, 400 V
- 35 A
- Number of main contacts as normally open contact
- 3
- Number of auxiliary contacts as normally open contact
- 1
- Number of auxiliary contacts as normally closed contact
- 1
- Type of electrical connection of main circuit
- Screw connection
