Siemens

3RV1063-7CL10

1 / 2
thumbnail
thumbnail

Beschreibung

AktivRoHS-konform

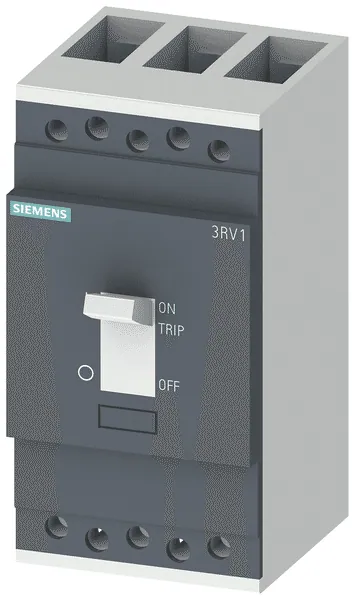

Molded case circ.breaker 3RV1 for motor protection standard switching capacity rated current in=160a electronic release short-circuit protection adjustable 6-13xln overload protection uel 0.4-1xln, class 10a-30 icu =120ka at 400v 3-pole, screw terminal incl. phase barriers
Country of Origin
IT
Part Number
3RV1063-7CL10
Tariff Code
85362090
EAN
4011209768284
UPC
662643851489
ETIM
Group Code : EG000017
Group Description : Low-voltage Industrial Components
Class Description : Motor protection circuit-breaker
Class Code : EC000074
Version : 7
€801.00
net
€890.00
Versand von:
€25.00
1
Zahlungsmethoden:
Bestes Angebot von:
CZVertrauenswürdiger Automa.Net Lieferant
Verfügbarkeit:
1 Stk.
Auf Lager
Aktualisiert am: 28-10-2024
Garantie:
24 Monate
Geschätzte Lieferung:
04-05 November zu Vereinigtes Königreich
Zustand:
Gebraucht
Gebraucht - Ein zuvor benutzter Artikel mit möglichen Anzeichen von kosmetischem Verschleiß. Er ist voll funktionsfähig und funktioniert wie vorgesehen, obwohl die Originalverpackung fehlen kann.
Versandinformationen
Sicherer Zahlungsprozess
Rückgabe- und Erstattungsrichtlinien
Versandrichtlinien
Garantiebedingungen

Specifications

Country of Origin
IT
Width
105 mm
Height
205 mm
Depth
103.5 mm
Number of poles
3
Phase failure sensitive
true
Rated operating voltage
690 V
Degree of protection (IP)
IP20
Rated permanent current Iu
250.0 A
Overload release current setting
64 A
Type of control element
Rocker lever
Rated operation power at AC-3, 400 V
90 kW
Adjustment range undelayed short-circuit release
2080 A
Device construction
Built-in device fixed built-in technique
Rated short-circuit breaking capacity lcu at 400 V, AC
120 kA
Type of electrical connection of main circuit
Screw connection
