Siemens

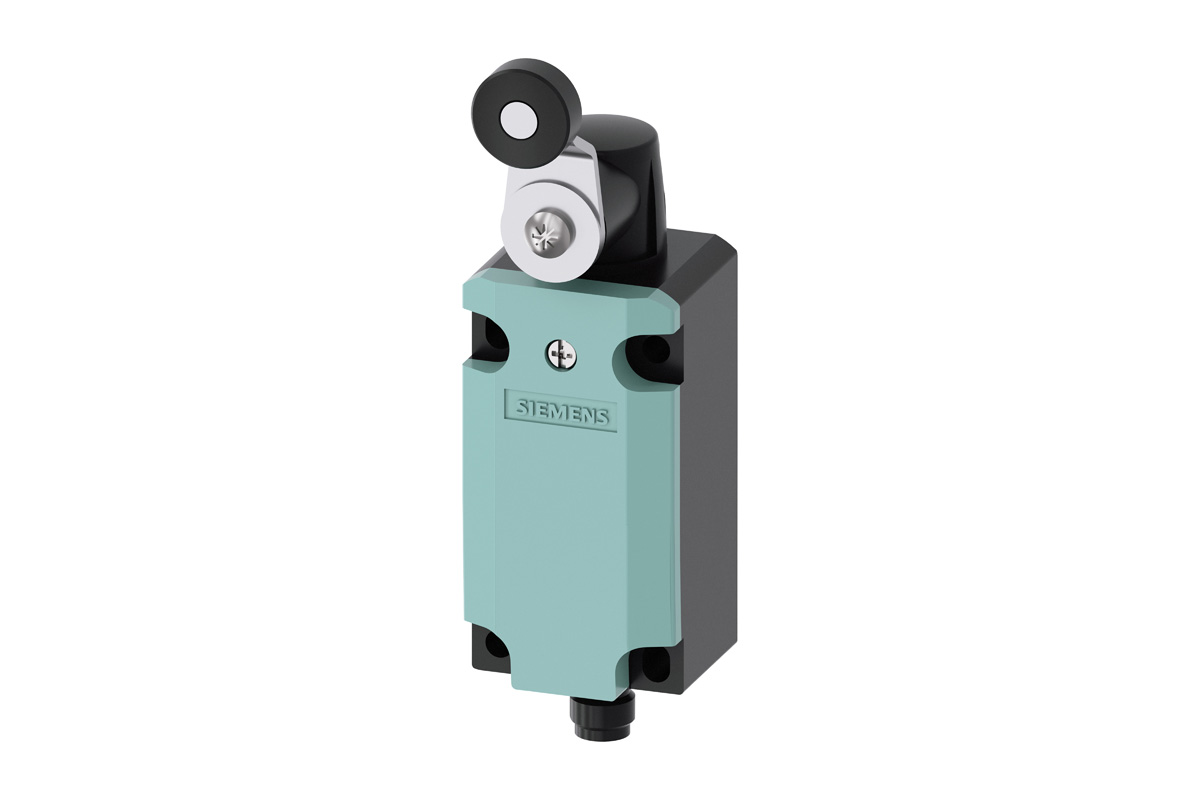

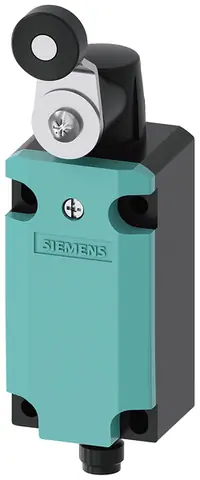

3SE5114-0CH01-1AC5
LIMSW, METAL ROLLER CRANK, 1NO+1NC, M12-5
- Erhalten Sie bis zu 90 Tage Zahlungsziele von 500+ Lieferanten
- Wiederverkaufsrabatte bis zu 40%!
€42.70
1
Zahlungsmöglichkeiten:
Insgesamt 20 Parts In-Stock von 19 Distributors
Produktbedingungen:
Angebot mit Herstellervorlaufzeit
Lieferung:21 - 35 Viele Arbeitstage
Bester Preis:
€35.65
Beschreibung
AktivRoHS-konform
Position switch metal enclosure 40 mm according to en 50041 1 no/1 nc quick action contacts with m12 connector, 5-pole, fixed pin assignment: pin1=21, pin2=22 pin3=13, pin4=14, pin5=pe rotary actuator right and/or left adjustable, metal lever 27 mm long and plastic roller 19 mmAdditional Information
- Part Number
- 3SE5114-0CH01-1AC5
- UPC
- 754554954363
- Tariff Code
- 8536509055
- Country of Origin
- DE
- ETIM
- Group Code : EG000026
- Group Description : Sensors
- Class Description : End switch
- Class Code : EC000030
- Version : 7
Specifications
- Country of Origin
- DE
- Width sensor
- 40 mm
- Forced opening
- true
- Material housing
- Metal
- Type of interface
- None
- Height of sensor
- 59.3 mm
- Length of sensor
- 141.5 mm
- Coating housing
- Lacquered
- Degree of protection (NEMA)
- 12
- Construction type housing
- Cuboid
- Suitable for safety functions
- true
- Degree of protection (IP)
- IP66/IP67
- Type of control element
- Rotary lever
- Number of safety auxiliary contacts
- 1
- Switching function
- Quick-break switch
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Number of contacts as change-over contact
- 0
- Rated operation current Ie at AC-15, 24 V
- 4 A
- Rated operation current Ie at DC-13, 24 V
- 3 A
- Number of contacts as normally open contact
- 1
- Rated operation current Ie at AC-15, 125 V
- 4 A
- Ambient temperature during operating
- -25 °C
- Number of contacts as normally closed contact
- 1
- Type of interface for safety communication
- None
- Rated operation current Ie at DC-13, 125 V
- 0.55 A
- Type of electric connection
- Plug-in connection M12
- Alignment of the control element
- Roller cam straight
