Siemens
3SK2122-1AA10
SAFETY RELAY, 20 F-DI, 4 F-DQ, 24VDC, SCREW
- Erhalten Sie bis zu 90 Tage Zahlungsziele von 500+ Lieferanten
- Wiederverkaufsrabatte bis zu 40%!
€497.17
1
Zahlungsmöglichkeiten:
Insgesamt 78 Parts In-Stock von 21 Distributors
Produktbedingungen:
Beschreibung
AktivRoHS-konform

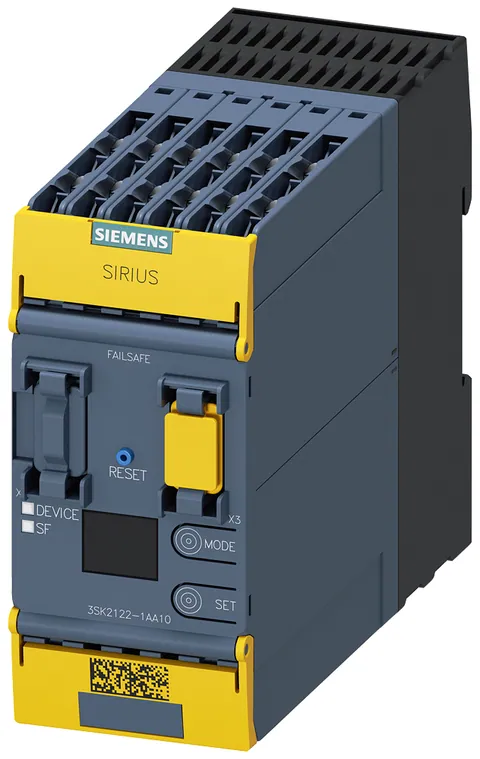

SIRIUS safety relay basic unit 3SK2 series 20 f-di, 4 f-dq, 2 dq, 24 V DC parameterizable via SIRIUS safety es width 45mm screw terminals up to sil3 (iec 61508) up to performance level e (iso 13849-1) 3sk1 output expansions and 3rm1 fail-safe motor starter connectable via device connectorAdditional Information
- Part Number
- 3SK2122-1AA10
- UPC
- 804766163494
- Tariff Code
- 8536490080
- Country of Origin
- DE
- ETIM
- Group Code : EG000019
- Group Description : Relays
- Class Description : Device for monitoring of safety-related circuits
- Class Code : EC001449
- Version : 7
Specifications
- Country of Origin
- DE
- Width
- 45 mm
- Height
- 100 mm
- Depth
- 124.5 mm
- EFDE0031
- true
- Model
- Basic device
- With detachable clamps
- true
- SIL according to IEC 61508
- 3
- Voltage type for actuating
- DC
- Stop category acc. IEC 60204
- 0 + 1
- With approval according to UL
- true
- Suitable for monitoring of valves
- true
- Rated control supply voltage Us at DC
- 24 V
- Type of electric connection
- Screw connection
- Performance level acc. EN ISO 13849-1
- Level e
- Suitable for monitoring of magnetic switches
- true
- Suitable for monitoring of position switches
- true
- Suitable for monitoring of proximity switches
- true
- Suitable for monitoring of emergency-stop circuits
- true
- Number of outputs, safety related, undelayed, with contact
- 0
- Number of outputs, safety related, undelayed, semiconductors
- 4
- Suitable for monitoring of optoelectronic protection equipment
- true
