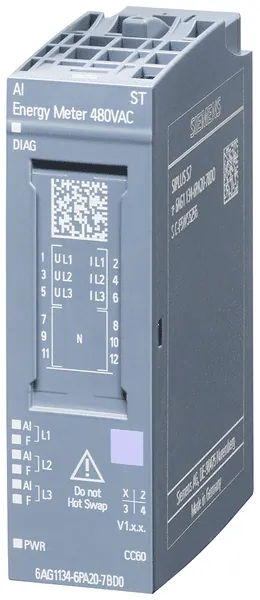

Siemens 6AG1134-6PA20-7BD0

The AI Energy Meter 480VAC ST operates effectively within a temperature range of -40 °C to +70 °C and is constructed with a conformal coating for protection. Based on the 6ES7134-6PA20-0BD0 model, this analog input module is suitable for BU type D0 and features channel diagnostics. The device supports both voltage and current measurements, including energy and frequency measurements, and is designed for use in various industrial applications.

With a supply voltage range of 90 V to 293 V (AC), it accommodates line frequencies from 47 Hz to 63 Hz. The meter can handle a maximum continuous current of 5 A and is equipped with diagnostic alarms and LED indicators for status and channel diagnostics. Its mechanical coding element ensures correct installation, while the mounting position is flexible.

Notably, the meter offers seamless acquisition of measured values with a bandwidth of 2 kHz, ensuring accurate readings. It can monitor up to 16 selectable process values and supports configuration during operation. The degree of protection is rated at IP20, indicating suitability for indoor applications.

For applications requiring high reliability, the conformal coating adheres to EN 61086 Class 2 standards, ensuring resistance to environmental factors. The dimensions of the device are 20 mm in width, 73 mm in height, and 58 mm in depth, with an approximate weight of 45 g. This product is particularly suitable for integration into industrial control systems, enhancing efficiency in energy...
