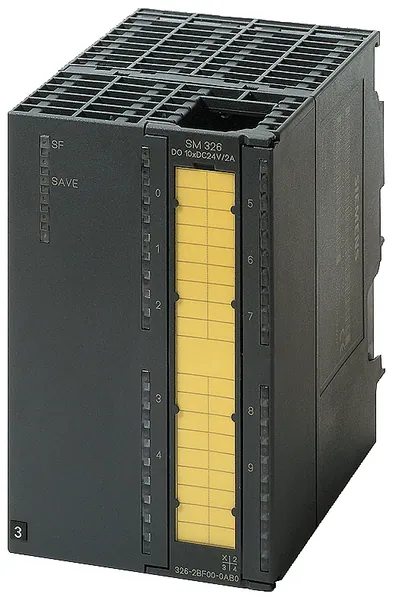

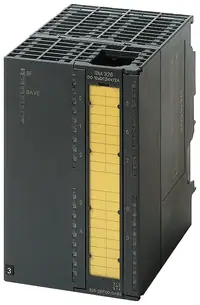

Siemens 6AG1326-2BF41-2AY0

The S7-300 SM326F DO8 digital output module, based on the designation code EN50155, is designed for railway applications and operates within a temperature range of -25 °C to 60 °C. This module features a total of 8 digital outputs, each capable of delivering up to 2 A at 24 V DC, ensuring compatibility with critical fail-safe applications up to Category 4 according to EN 954-1 and SIL 3 per IEC 61508.

With a compact form factor measuring 80 mm in width, 120 mm in depth, and 125 mm in height, it supports screw and spring connection methods for electrical integration. The module is equipped with short-circuit protection and is configurable, enhancing its versatility in various industrial settings. Its operational capabilities are further enhanced by diagnostic features, including LED indicators for fail-safe operation and group error notifications.

This product is suitable for environments with biological, chemical, and mechanical activity as per EN 60721 standards, making it ideal for use in harsh conditions. The S7-300 SM326F DO8 also incorporates reverse polarity protection and adheres to multiple international certifications, ensuring its reliability in demanding applications.
