Siemens
6ES7131-4BD01-0AA0

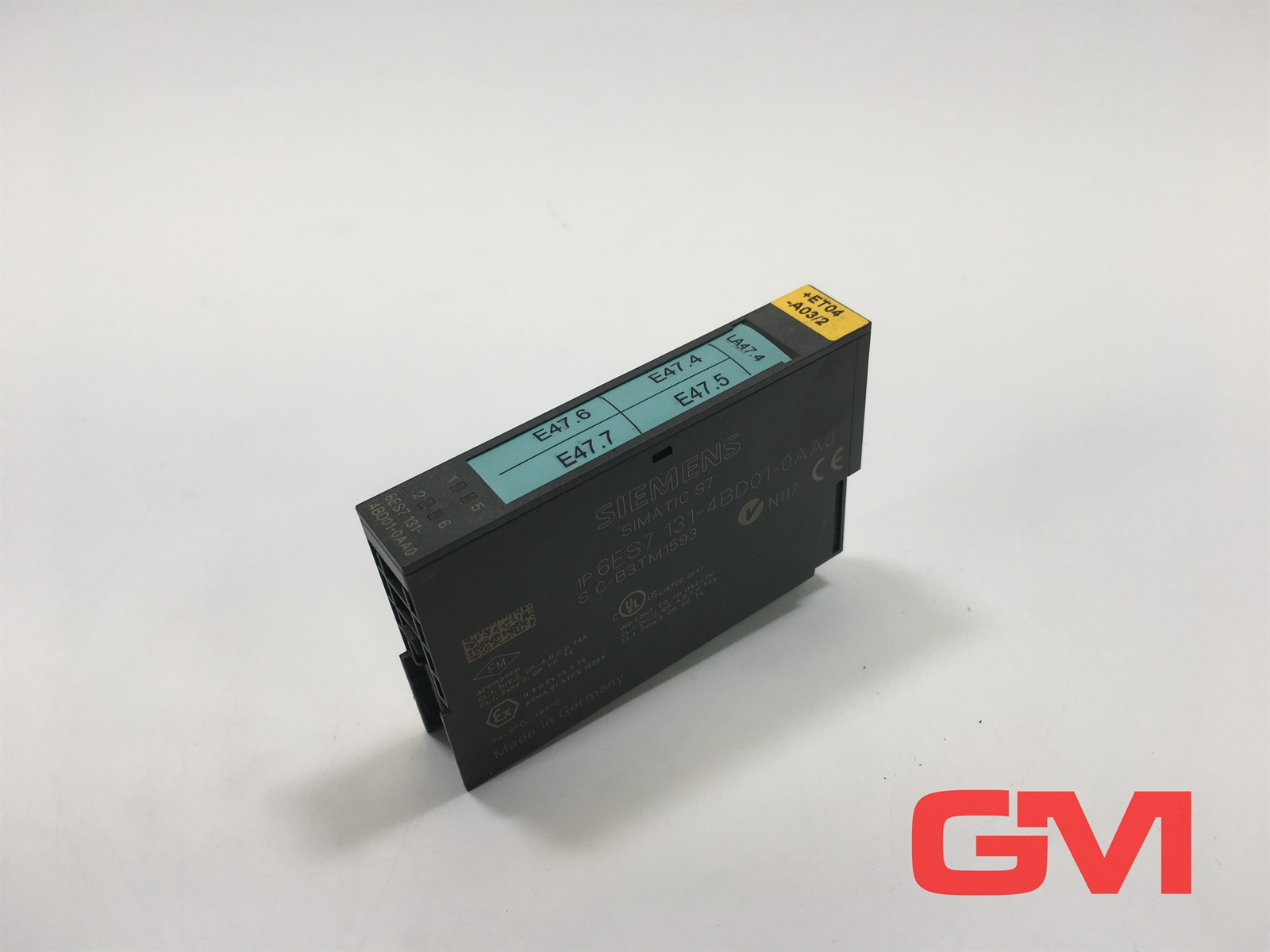

MODULE 4DI STD 24VDC, 15MM, ET200S (5PK)
- Erhalten Sie bis zu 90 Tage Zahlungsziele von 500+ Lieferanten
- Wiederverkaufsrabatte bis zu 40%!
€2.80
1
Zahlungsmöglichkeiten:
Insgesamt 8.950 Parts In-Stock von 95 Distributors
Produktbedingungen:
Angebot mit Herstellervorlaufzeit
Lieferung:Auf Anfrage
Bester Preis:
€97.59
Beschreibung
Aktiv ReifRoHS-konform
SIMATIC dp, 5 electron. modules for et 200s, 4 di standard 24V DC, 15 mm width, 5 pieces per packaging unitAdditional Information
- Part Number
- 6ES7131-4BD01-0AA0
- UPC
- 662643216974
- Tariff Code
- 8538903000
- Country of Origin
- CN
- ETIM
- Group Code : EG000024
- Group Description : PLC's
- Class Description : Fieldbus, decentr. periphery - digital I/O module
- Class Code : EC001599
- Version : 7
Specifications
- Depth
- 52 mm
- Width
- 15 mm
- Height
- 81 mm
- System accessory
- true
- Supply voltage DC
- 20.4 V
- Number of digital inputs
- 4
- Number of digital outputs
- 0
- Rail mounting possible
- true
- Type of digital output
- None
- Input current at signal 1
- 7 A
- Number of HW-interfaces USB
- 0
- Degree of protection (IP)
- IP20
- Number of HW-interfaces other
- 0
- Number of interfaces PROFINET
- 0
- Permitted voltage at input
- -30 V
- Digital inputs configurable
- true
- Number of HW-interfaces RS-232
- 0
- Number of HW-interfaces RS-422
- 0
- Number of HW-interfaces RS-485
- 0
- Time delay at signal exchange
- 2 ms
- Voltage type of supply voltage
- DC
- Number of HW-interfaces Wireless
- 0
- Number of HW-interfaces parallel
- 0
- Type of voltage (input voltage)
- DC
- Number of HW-interfaces serial TTY
- 0
- Explosion safety category for dust
- None
- Number of HW-interfaces industrial Ethernet
- 0
- Country of Origin
- CN
- Type of electric connection
- Screw-/spring clamp connection
- Fieldbus connection over separate bus coupler possible
- true
- Explosion safety category for gas
- ATEX gas-ex-protection, Cat. 3G
