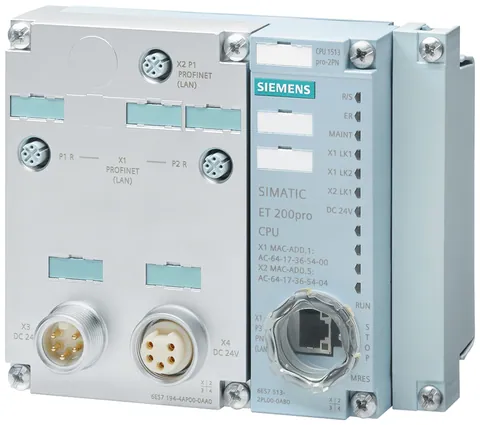

Siemens 6ES7513-2PL00-0AB0

The CPU 1513pro-2 PN serves as a central processing unit for the ET 200pro system, equipped with 300 KB of integrated work memory for programs and an additional 1.5 MB for data. This model includes two PROFINET interfaces: the first supports IRT with a 3-port switch, while the second operates via standard PROFINET RT. With a bit performance of 40 ns, the CPU is capable of handling complex tasks efficiently.

In terms of physical specifications, it measures 135 mm in width, 130 mm in height, and 65 mm in depth, and it weighs approximately 614 g. Its degree of protection is rated at IP65/67, making it suitable for use in harsh environments. The device operates with a supply voltage of 20.4 V to 28.8 V DC and has a maximum input current of 0.4 A.

For memory expansion, a SIMATIC Memory Card is required, as the CPU supports up to 32 GB for load memory. The system is designed for various applications, including those requiring isochronous mode with a minimum OB 6x cycle of 500 µs. Additionally, it supports multiple communication protocols such as MODBUS and PROFINET IO, enhancing its interoperability in automation settings. The Designation Code for this product is CPU 1513pro-2 PN.
