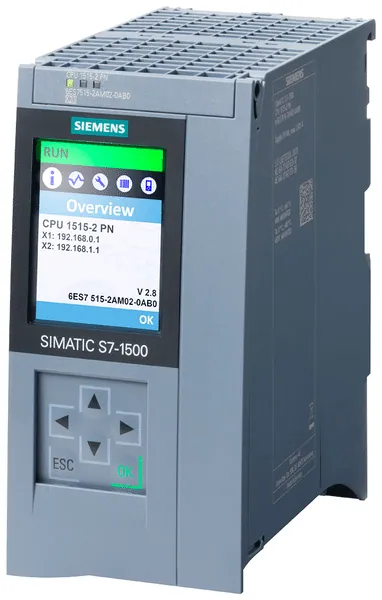

6ES7515-2AM02-0AB0
- Erhalten Sie bis zu 90 Tage Zahlungsziele von 500+ Lieferanten
- Wiederverkaufsrabatte bis zu 40%!
Beschreibung
Additional Information
- Part Number
- 6ES7515-2AM02-0AB0
- UPC
- 804766977312
- Tariff Code
- 8537109160
- Country of Origin
- DE
Specifications
- Country of Origin
- DE
- Width
- 70 mm
- Depth
- 129 mm
- Height
- 147 mm
- Model
- Modular
- With display
- true
- Type of memory
- Other
- Memory size
- 3500 kByte
- System accessory
- true
- Supply voltage DC
- 19.2 V
- Number of relay outputs
- 0
- Number of digital inputs
- 0
- Number of analogue inputs
- 0
- Number of digital outputs
- 0
- Rail mounting possible
- true
- Number of analogue outputs
- 0
- Number of HW-interfaces USB
- 0
- Number of HW-interfaces other
- 0
- Number of interfaces PROFINET
- 2
- Number of HW-interfaces RS-232
- 0
- Number of HW-interfaces RS-422
- 0
- Number of HW-interfaces RS-485
- 0
- Voltage type of supply voltage
- DC
- Number of HW-interfaces Wireless
- 0
- Number of HW-interfaces parallel
- 0
- Supporting protocol for MODBUS
- true
- Supporting protocol for TCP/IP
- true
- Explosion safety category for dust
- None
- Supporting protocol for PROFINET IO
- true
- Number of HW-interfaces industrial Ethernet
- 2
- Processing time (1K, binary operation)
- 0.03 ms
- Explosion safety category for gas
- ATEX gas-ex-protection, Cat. 3G
Ähnliche Produkte
Zusätzliche Informationen
The Siemens 6ES75152AM020AB0 is a powerful industrial automation controller designed for large-scale applications. It is a compact, all-in-one unit with a fully integrated CPU, memory, and communication ports. The 6ES75152AM020AB0 features a 5-slot backplane for easy expansion and a maximum of 15 I/O points. It also has an integrated Ethernet port for data transmission, as well as a variety of other ports for connecting to external devices.
The 6ES75152AM020AB0 is designed to be simple to install and configure. It provides an intuitive user interface for setting up, monitoring, and controlling automation processes. The controller also includes a comprehensive suite of software tools to simplify the programming and debugging of automation tasks. Additionally, it is compatible with a wide range of industrial communication protocols, so it can be quickly integrated into existing systems.
The 6ES75152AM020AB0 is an ideal solution for industrial automation projects that require a reliable, flexible, and powerful controller. It is a cost-effective, easy-to-use solution that provides the highest levels of reliability and performance. With its robust construction and long-term reliability, the Siemens 6ES75152AM020AB0 is a great choice for any large-scale automation project.
