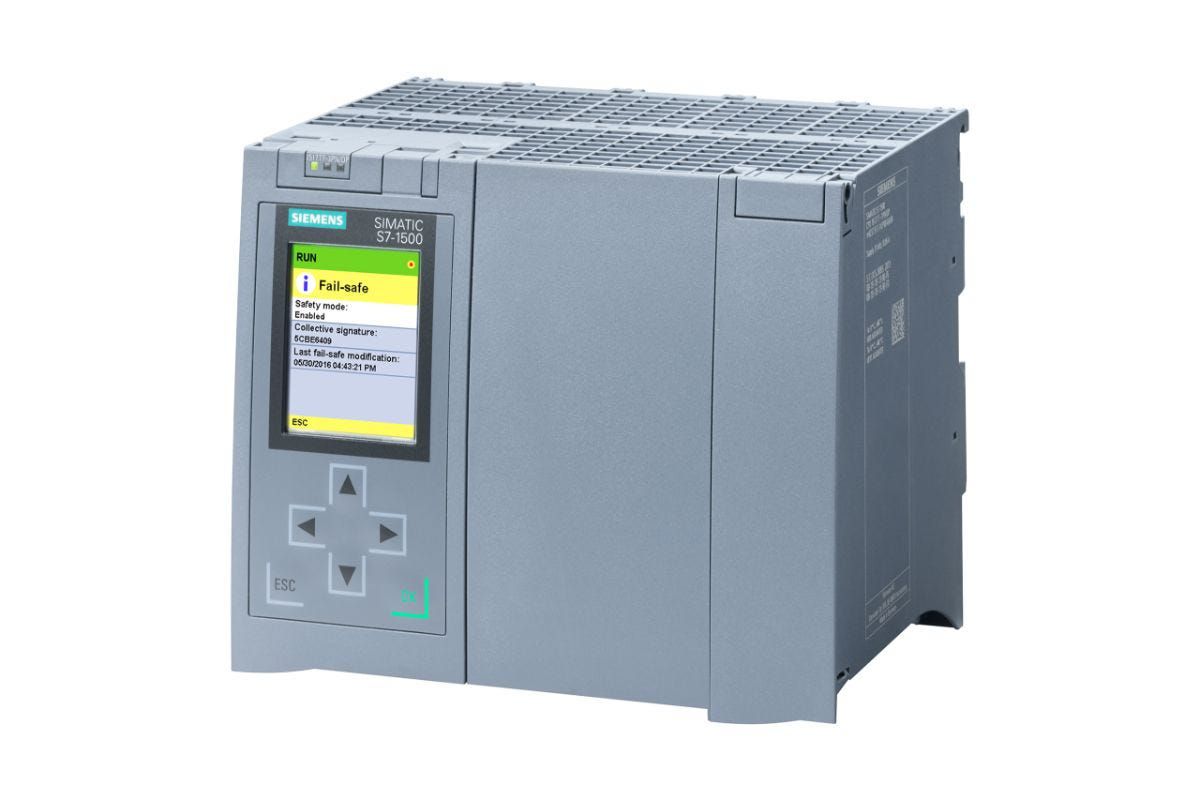

6ES7517-3UP00-0AB0
- Erhalten Sie bis zu 90 Tage Zahlungsziele von 500+ Lieferanten
- Wiederverkaufsrabatte bis zu 40%!
Beschreibung
Additional Information
- Part Number
- 6ES7517-3UP00-0AB0
- UPC
- 804766333934
- Tariff Code
- 8537109160
- Country of Origin
- DE
- ETIM
- Group Code : EG000024
- Group Description : PLC's
- Class Description : PLC CPU-module
- Class Code : EC000236
- Version : 7
Specifications
- Country of Origin
- DE
- Depth
- 129 mm
- Width
- 175 mm
- Height
- 147 mm
- Model
- Modular
- With display
- true
- Type of memory
- Other
- System accessory
- true
- Memory size
- 11000 kByte
- Supply voltage DC
- 19.2 V
- Number of relay outputs
- 0
- Number of digital inputs
- 0
- Number of analogue inputs
- 0
- Number of digital outputs
- 0
- Rail mounting possible
- true
- Number of analogue outputs
- 0
- SIL according to IEC 61508
- 3
- Number of HW-interfaces USB
- 0
- Number of HW-interfaces other
- 0
- Number of interfaces PROFINET
- 2
- Number of HW-interfaces RS-232
- 0
- Number of HW-interfaces RS-422
- 0
- Number of HW-interfaces RS-485
- 1
- Voltage type of supply voltage
- DC
- Number of HW-interfaces Wireless
- 0
- Number of HW-interfaces parallel
- 0
- Suitable for safety functions
- true
- Supporting protocol for MODBUS
- true
- Supporting protocol for TCP/IP
- true
- Supporting protocol for PROFIBUS
- true
- Supporting protocol for PROFIsafe
- true
- Explosion safety category for dust
- None
- Supporting protocol for PROFINET IO
- true
- Number of HW-interfaces industrial Ethernet
- 2
- Performance level acc. EN ISO 13849-1
- Level e
- Processing time (1K, binary operation)
- 0.002 ms
- Explosion safety category for gas
- ATEX gas-ex-protection, Cat. 3G
Zusätzliche Informationen
The Siemens 6ES75173UP000AB0 is a robust and reliable automation product designed for industrial applications. It is part of the SIMATIC S7-1500 series of automation products, offering a comprehensive suite of features for controlling machines and processes. The 6ES75173UP000AB0 includes a CPU 1517-3 PN/DP, which is a powerful processor capable of handling complex tasks. It supports a wide range of communication protocols, including PROFINET and PROFIBUS, and has four onboard Ethernet ports for network connectivity. Additionally, it features two USB ports for data transfer and a microSD slot for storage and program backup.
The 6ES75173UP000AB0 also includes a built-in safety technology, allowing it to monitor and control safety-related processes, such as emergency stops. The integrated safety technology supports SIL 3 and PL e safety performance levels, providing an extra layer of protection against potential risks. Furthermore, it is designed to be compatible with other Siemens products, allowing it to be easily integrated into existing systems.
The 6ES75173UP000AB0 also offers a range of advanced features, such as an integrated web server, support for remote access, and a user-friendly programming environment. It is designed to be energy-efficient and reliable, and is certified to meet industry standards such as EN 61508 and EN 61800-5-2. The product is backed by a three-year warranty, providing customers with peace of mind that their investment is secure.
