Siemens
6SL3210-1PH25-2AL0

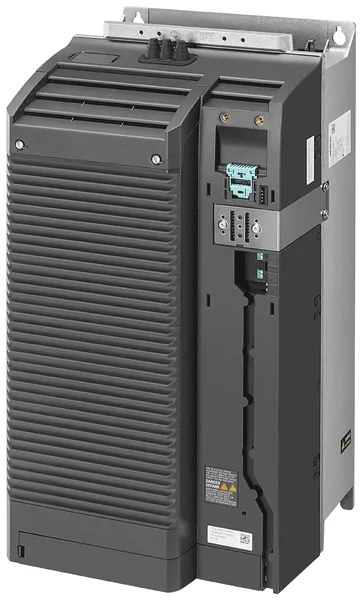

SINAMICS PM240-2 IP20-FSE-A-690V-45KW
- Erhalten Sie bis zu 90 Tage Zahlungsziele von 500+ Lieferanten
- Wiederverkaufsrabatte bis zu 40%!
€4,564.80
1
Zahlungsmöglichkeiten:
Insgesamt 4 Parts In-Stock von 18 Distributors
Produktbedingungen:
Angebot mit Herstellervorlaufzeit
Lieferung:Auf Anfrage
Bester Preis:
€3,876.02
Beschreibung
AktivRoHS-konform
SINAMICS G120 POWER MODULE PM240-2 WITH BUILT IN CL. A FILTER WITH BUILT IN BRAKING CHOPPER 3AC500-690V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 37KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 TO +50 DEG C (HO) OUTPUT LOW OVERLOAD: 45KW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 TO +40 DEG C (LO) 551 X 275 X 237 (HXWXD), FSE PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 HF8Additional Information
- Part Number
- 6SL3210-1PH25-2AL0
- UPC
- 804766091049
- Tariff Code
- 8504409540
- Country of Origin
- DE
- ETIM
- Group Code : EG000017
- Group Description : Low-voltage Industrial Components
- Class Description : Frequency converter =< 1 kV
- Class Code : EC001857
- Version : 7
Specifications
- Brand
- SINAMICS
- Depth
- 237 millimetre
- Width
- 275 millimetre
- Height
- 551 millimetre
- Input phase number
- 3
- Net weight
- 28 kilogram
- Protection type IP
- IP20
- Output phases, number of
- 3
- Max. mains voltage
- 690 volt
- Min. network voltage
- 500 volt
- Rated output voltage
- 690 volt
- Brake chopper integrated
- true
- Rated output current
- 52 ampere
- Max. output frequency
- 550 hertz
- Description of product type
- PM240-2
- Design of frequency changer
- U converter
- Use in the industrial area permissible
- true
- Power loss, static, current-independent [Pls]
- 37 watt
- Relative symmetric mains voltage tolerance
- 10 percent
- Relative symmetric mains frequency tolerance
- 5 percent
- Max. output power with square load at rated output voltage
- 45 kilowatt
- Max. output power with linear load and rated output voltage
- 37 kilowatt
- Country of Origin
- DE
