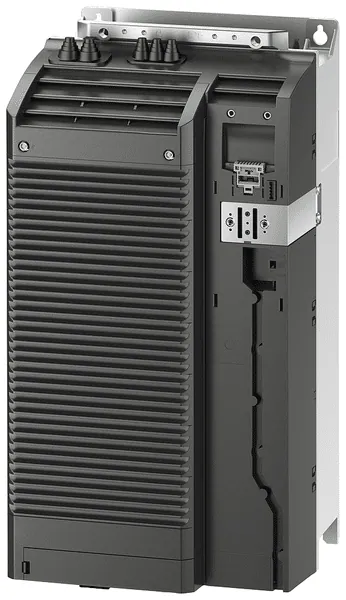

Siemens 6SL3210-1RH26-2AL0

The PM240P-2 Power Module is designed to operate at a mains voltage of 500 V within a three-phase system. It supports an output frequency of up to 550 Hz, making it suitable for various industrial applications. This module features a compact design with dimensions of 551 mm in height, 275 mm in width, and 237 mm in depth.

It is capable of delivering a high overload output of 45 kW for 150% load for up to 60 seconds and 100% for 240 seconds, under ambient temperatures ranging from -20 to +50 degrees Celsius. In low overload scenarios, it can provide 55 kW for 135% load for 3 seconds, 110% for 57 seconds, and 100% for 240 seconds, with an ambient temperature limit of -20 to +40 degrees Celsius.

This module features an IP20 protection class and is approved for CU firmware version V4.7 SP6 HF1. Note that it does not include a control unit or panel. The unit is designed for industrial environments and adheres to a relative symmetric net frequency tolerance of 5% and a voltage tolerance of -10%.
