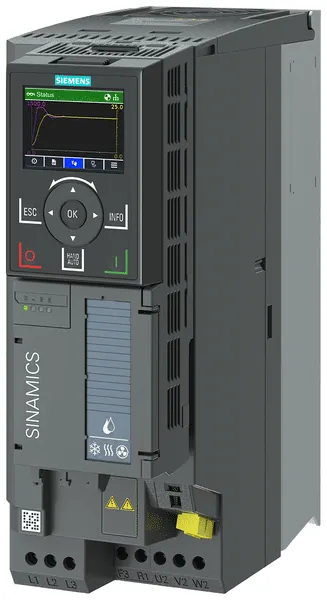

Siemens 6SL3220-2YE24-0AB0

The SINAMICS G120X is engineered for a rated power of 7.5 kW, accommodating input voltages ranging from 380 V to 480 V with a frequency of 47-63 Hz. This model supports three-phase input and output configurations, ensuring versatility in various industrial applications.

Featuring a nominal output current of 18.5 A, it is capable of handling a maximum output frequency of 550 Hz. The device includes six digital inputs, two analog inputs, and one analog output, allowing for comprehensive control and monitoring.

With a compact size of 209 mm in depth, 100 mm in width, and 275 mm in height, the G120X is rated with an IP20 degree of protection, suitable for installation in open environments. The unit is equipped with integrated fieldbus options such as MODBUS RTU and BACnet MS/TP, enhancing its connectivity and interoperability in automation systems.

For maintenance, spare parts are available, including preferred types 6SL3220-3YE24-0AF0 and corner types 6SL3220-3YE24-0AB0, ensuring long-term reliability and support.
