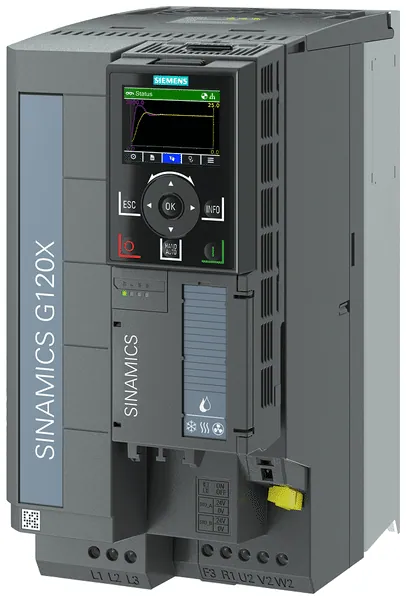

Siemens 6SL3220-2YE26-0UB0

The SINAMICS G120X features a rated power of 11 kW and operates effectively at 110% for 60 seconds and 100% for 240 seconds. It is designed for unfiltered three-phase input ranging from 380 to 480 V with a frequency of 47-63 Hz. The ambient temperature range for this model is between -20°C and +45°C.

This device has a compact size with dimensions of 295 mm in height, 140 mm in width, and 209 mm in depth. It offers a degree of protection classified as IP20, making it suitable for installation in environments where it is not directly exposed to moisture or dust. The paint finish is rated as 3C2.

Fieldbus integration is provided for MODBUS RTU and BACnet MS/TP, facilitating communication in various industrial applications. The G120X includes a basic operator panel and does not support I/O expansion. It has six digital inputs, two analogue inputs, and one analogue output, with a maximum output frequency of 550 Hz. The nominal output current is rated at 27 A.

For spare parts, preferred types and corresponding part numbers are specified, including 6SL3220-3YE26-0UF0 and others within the MLFB 6SL32.0-.YE26-.UF0. The designation code for this model is 6SL3220-2YE26-0UB0.
