Siemens 6SL3220-2YE38-0UF0

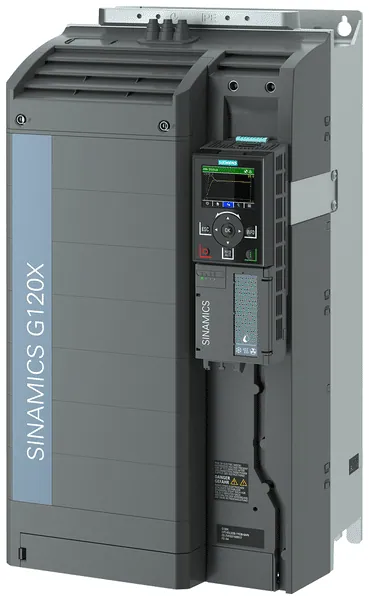

The SINAMICS G120X system is rated for a power output of 45 kW, capable of handling 110% load for 60 seconds and 100% load for 240 seconds. It operates on an unfiltered voltage range of 380-480 V with three-phase AC input, maintaining a frequency of 47-63 Hz. The device is housed in a compact form factor with dimensions of 239 mm in depth, 275 mm in width, and 551 mm in height, and is designed to operate in environments with ambient temperatures ranging from -20 °C to +45 °C.

With a degree of protection rated at IP20, this open type unit is suitable for installation in controlled environments. It features a basic operator panel and comes without I/O expansion capabilities. The integrated fieldbus support includes protocols for PROFINET PN and EtherNet/IP, facilitating connectivity within modern industrial networks.

Notably, the G120X includes multiple hardware interfaces, such as two PROFINET interfaces and one RS-232 interface, catering to diverse communication needs. The maximum output frequency is rated at 550 Hz, with a nominal output current of 93 A. This unit is identified with the designation code 6SL3220-3YE38-0UF0, ensuring compatibility within the specified MLFB series.
