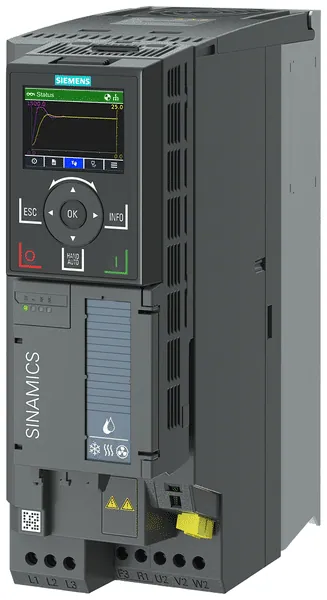

Siemens 6SL3230-2YE24-0AF0

The SINAMICS G120X is designed to deliver a rated power of 7.5 kW. It can handle 110% load for 60 seconds and 100% load for 240 seconds. This model features a radio interference suppression filter compliant with category C2 and operates on a three-phase supply with a voltage range of 380-480 V and a frequency of 47-63 Hz.

With an ambient temperature range of -20 to +45 °C, it is suitable for various industrial environments. The dimensions of the device are 275 mm in height, 100 mm in width, and 209 mm in depth, classified under a degree of protection of IP20 (UL open type). The paint finish adheres to standard 3C3 requirements.

This version includes a Basic Operator Panel and comes without IO expansion. The integrated fieldbus supports PROFINET PN and Ethernet IP, with a total of 2 PROFINET interfaces. Additionally, it features 6 digital inputs, 2 analogue inputs, and 1 analogue output.

For spare parts, only the preferred type 6SL3220-3YE24-0AF0 is applicable, and MLFBs within the range 6SL32.0-.YE24-.AF0 can be credited, as indicated by SIOS 109761925.
