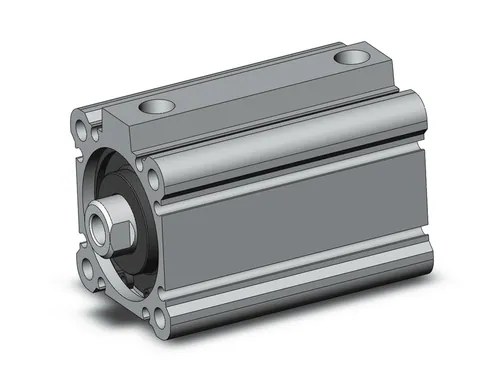

SMC CDQ2A40-40DCZ

The SMC C(D)Q2-Z Compact Cylinder is engineered for applications requiring a compact, efficient pneumatic actuator. This double acting, single rod cylinder features a streamlined design that saves space and reduces weight by 5 to 13% compared to previous models. The cylinder is available in bore sizes ranging from Φ4 to Φ200, making it suitable for a wide range of industrial applications.

One of the key benefits of the C(D)Q2-Z series is its versatile mounting options. It can accommodate small auto switches on up to four surfaces (two surfaces for Φ12 to Φ25), ensuring no projection of the auto switch. This feature enhances the cylinder's compatibility with various installation environments. Additionally, the cylinder comes with pivot brackets for double clevis and compact type foot brackets, further expanding its mounting flexibility.

The C(D)Q2-Z series also offers built-in magnets for position sensing and rubber bumpers for noise reduction and shock absorption. The cylinder's design includes a groove for auto switch mounting, ensuring a clean and integrated appearance. With its robust construction and high performance, the C(D)Q2-Z series is ideal for applications requiring reliable and efficient pneumatic actuation.

Applications: The SMC C(D)Q2-Z Compact Cylinder is suitable for a variety of industrial applications, including automation systems, material handling, and packaging machinery, where space-saving and efficient actuation are critical.
