Wago
857-552
JUMPFLEX® signal conditioner; Rogowski; configurable
- Erhalten Sie bis zu 90 Tage Zahlungsziele von 500+ Lieferanten
- Wiederverkaufsrabatte bis zu 40%!
Preisanfrage senden
1
Zahlungsmöglichkeiten:
Produktbedingungen:
Angebot mit Herstellervorlaufzeit
Lieferung:Auf Anfrage
Bester Preis:
€152.50
Additional Information
- Part Number
- 857-552
- UPC
- 4050821476917
- Tariff Code
- 85437090300
- ETIM
- Group Code : EG000026
- Group Description : Sensors
- Class Description : Current value transformer
- Class Code : EC002475
- Version : 7
Output (Analog)
- Output signal type
- Current || Voltage
- Output signal (voltage)
- 0 … 5 V; 1 … 5 V; 0 … 10 V; 2 … 10 V
- Output signal (current)
- 0 … 10 mA; 2 … 10 mA; 0 … 20 mA; 4 … 20 mA
- Load impedance (voltage output)
- ≥ 1 kΩ
- Load impedance (current output)
- ≤ 600 Ω
Signal Processing
- Limit frequency
- 2 kHz
- Software filter (adjustable)
- Moving average value (filter level: 30)
- Step response (typ.)
- 60 ms
Configuration

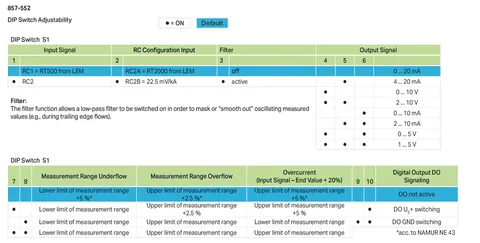

- Configuration options
- DIP switch || WAGO Interface Configuration Software || WAGO Interface Configuration App
Environmental Requirements
- Ambient temperature (operation)
- -25 … +70 °C
- Ambient temperature (storage)
- -40 … +85 °C
- Relative humidity
- 5 … 95 % (no condensation permissible)
- Operating altitude (max.)
- 2000 m
Output (Digital)
- Switching voltage (DO) max.
- Supply voltage applied
- Continuous current (DO) max.
- 100 mA (no internal restriction)
- Number of switching thresholds (DO)
- 1 (adjustable)
Connection Data
- Connection technology
- Push-in CAGE CLAMP®
- Solid conductor
- 0.08 … 2.5 mm² / 28 … 14 AWG
- Fine-stranded conductor
- 0.34 … 2.5 mm² / 22 … 14 AWG
- Strip length
- 9 … 10 mm / 0.35 … 0.39 inches
Signaling And Communication
- Configuration options
- DIP switch || WAGO Interface Configuration Software || WAGO Interface Configuration App
- Input signal (voltage)
- 50 Hz sinusoidal signals: AC 10.05 mV (RC1); AC 40.2 mV (RC2A); AC 90 mV (RC2B)
Supply
- Power supply type
- 24 VDC
- Nominal supply voltage US
- DC 24 V
- Supply voltage range
- ±30 %
- Current consumption at nominal supply voltage
- ≤ 40 mA (+ IDO)
Physical Data
- Width
- 6 mm / 0.236 inches
- Height
- 94 mm / 3.701 inches
- Depth from upper-edge of DIN-rail
- 97.8 mm / 3.85 inches
Measurement Error
- Transmission error (max.)
- ≤ 1 % (of the full scale value)
- Temperature coefficient
- ≤ 0.01 %/K
Material Data
- Fire load
- 0.418 MJ
- Weight
- 35.113 g
Input
- Input signal type
- Voltage
- Input signal (voltage)
- 50 Hz sinusoidal signals: AC 10.05 mV (RC1); AC 40.2 mV (RC2A); AC 90 mV (RC2B)
- Sensitivity
- RC2B: 22.5 mV/kA
- Measurement range (current)
- AC 500 A (RC1); AC 2000 A (RC2A); AC 4000 A (RC2B)
- Frequency range
- 50 Hz (Sinusoidal signals)
- Response threshold
- ≤ 1 % (of measurement range nominal value)
- Resolution (current)
- 250 mA (RC1) || 1 A (RC2A) || 1.5 A (RC2B)
Standards And Specifications
- Conformity marking
- CE
Mechanical Data
- Mounting type
- DIN-35 rail
Specifications
- Product Group Code
- 0006
Commercial Data
- Packaging type
- Bag
- Country of origin
- DE
- GTIN
- 4050821476917
- Customs tariff number
- 85437090300
Notes
- Note
- Additional setting options via WAGO Interface Configuration Software or WAGO Interface Configuration App
Test Voltage
- Test voltage (input/output/supply)
- AC 2.5 kV; 50 Hz; 1 min
