Weidmuller 1194840000

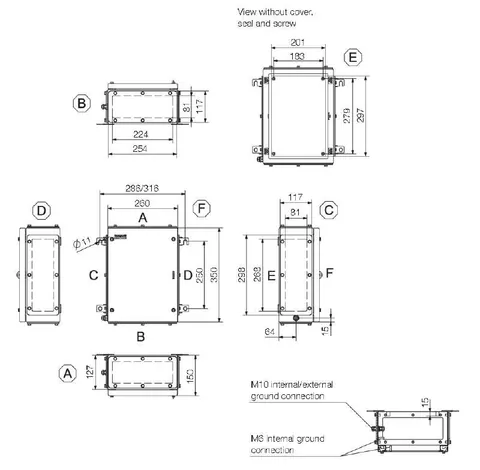

The KTB MH 352615 S4E4 terminal box is an empty enclosure constructed from stainless steel 1.4404 (316L) with an electropolished surface finish. Its dimensions measure 350 mm in height, 260 mm in width, and 150 mm in depth. The box is equipped with gland plates on the bottom, top, left, and right, accommodating various cable gland configurations, including M12 to M75 sizes.

Designed for operation in challenging environments, this enclosure is suitable for explosive risk zones, process, oil and gas, and chemical industries, both offshore and onshore. It features a maximum payload capacity of 36 kg and can withstand operating temperatures ranging from -60 °C to 135 °C. Its protection class is rated at IP66 and IP67, ensuring high resistance to dust and water ingress.

The enclosure's mounting options include four welded-on feet with slotted and cross-shaped designs, and it utilizes hinges for lid attachment. Additionally, the internal structure includes a welded-on M6 stainless-steel earth stud for grounding purposes. The product complies with various international standards, including DIN EN 62208 and IEC 60079, ensuring its reliability in specialized applications.
