Weidmuller 1797740000

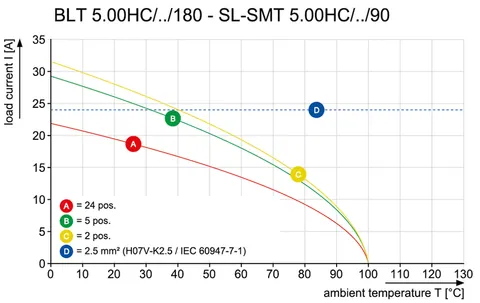

The PCB plug-in connector features a male header design with a closed side, suitable for THT/THR solder connections. With a pitch of 5.00 mm and a total of 7 poles, each solder pin measures 1.5 mm in length. The connector operates effectively at a rated voltage of 300 V and a rated current of 18.5 A under specific conditions as per UL 1059 standards.

This component is constructed from LCP GF insulating material with a black color, compliant with the IPC-A-610 Class 2 standards. It has a Comparative Tracking Index (CTI) of ≥ 175 and an insulation strength exceeding 108 Ω, ensuring reliable performance in various environments. The connector can operate within a temperature range of -50 °C to 100 °C, providing versatility for different applications.

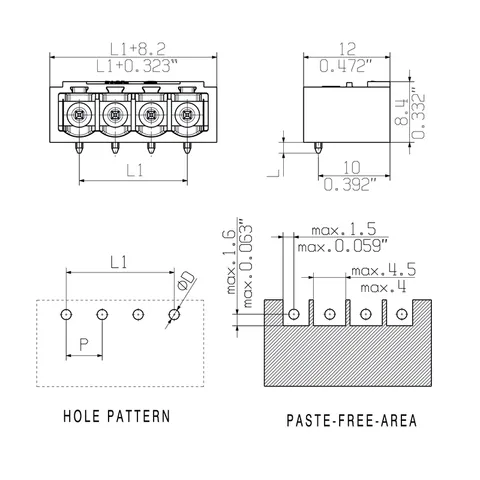

Approvals include CSA, EAC, and UR, confirming its adherence to industry standards. The connector's dimensions include a width of 38.2 mm and a height of 10 mm, making it suitable for compact PCB designs. The packaging is provided in tape form, facilitating easy integration into automated assembly processes.
