Weidmuller 1914580000

This 5.00 mm PCB terminal block is engineered for reliable electrical connections, featuring a 135° angle and three poles. The solder pin length measures 3.5 mm and is tinned for enhanced conductivity. The terminal supports a maximum clamping range of 2.5 mm², suitable for various wire types, including flexible and solid conductors.

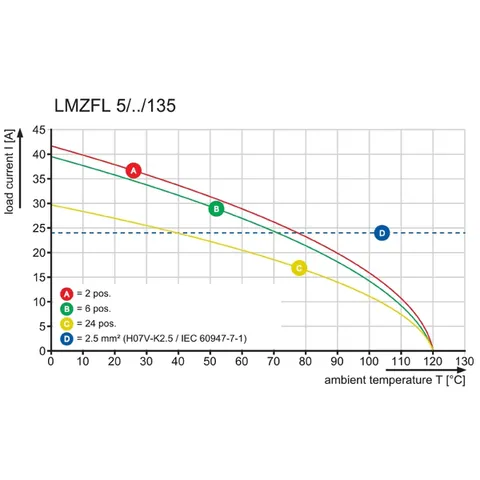

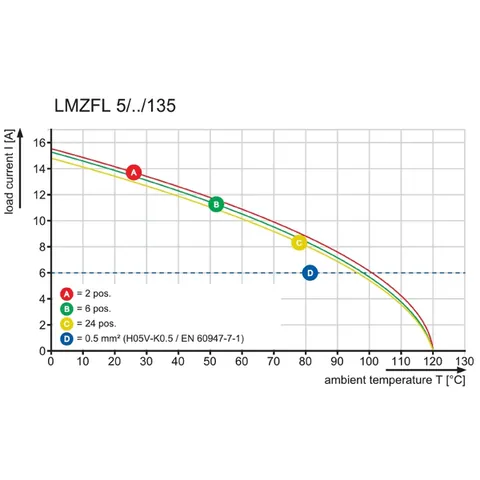

Constructed using Wemid (PA) insulating material in an orange color, this component complies with stringent safety standards, including IEC 60664-1 and IEC 61984. It is certified by cURus and CSA, with a rated voltage of 300 V and rated current of up to 24 A depending on the pole configuration and temperature conditions. The terminal block is also designed for ease of installation with a THT solder connection and a conductor outlet direction of 135°.

In terms of dimensions, the terminal block measures 17.98 mm in width, 20.24 mm in height, and 14.5 mm in depth, with a net weight of 4.76 g. Its operational temperature range extends from -50 °C to 120 °C, ensuring functionality across diverse environments. It adheres to IP 20 touch-safe protection standards, making it suitable for various applications.
