Weidmuller 1925390150

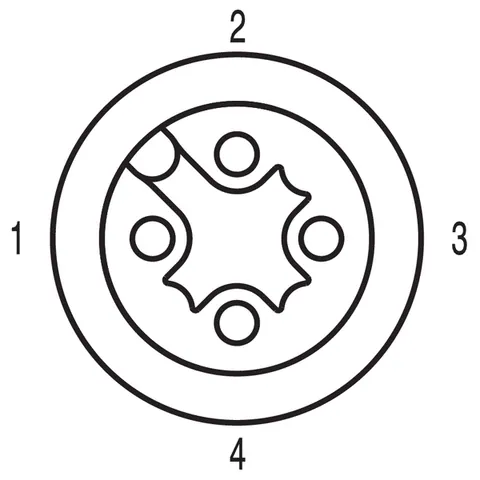

The M12 to M12 connector cable is engineered for sensor and actuator applications, featuring a 4-pole configuration and a length of 1.5 meters. It is constructed with a pin to socket design at a 90° angle, facilitating efficient installation in tight spaces.

With an operating temperature range of -25°C to +80°C, this cable is suitable for various environments. The cable is rated for a voltage of 250 V and a current of 4 A, ensuring robust performance under standard operating conditions. The contact surfaces are gold-plated to enhance conductivity and minimize corrosion.

Compliance with IEC 61076-2-101 standards ensures compatibility with existing systems. The cable's PVC sheath is halogen-free and provides additional protection against environmental factors. The protection degree of IP65, IP66, IP67, and IP68 when properly installed, confirms its suitability for demanding applications where moisture and dust are concerns.

Furthermore, the connector cable has a net weight of 88.97 g and features a tightness torque of 0.8 - 1.2 Nm, supporting a minimum of 100 plugging cycles. It is not shielded and is not suitable for cable carriers.
