Weidmuller 1925630150

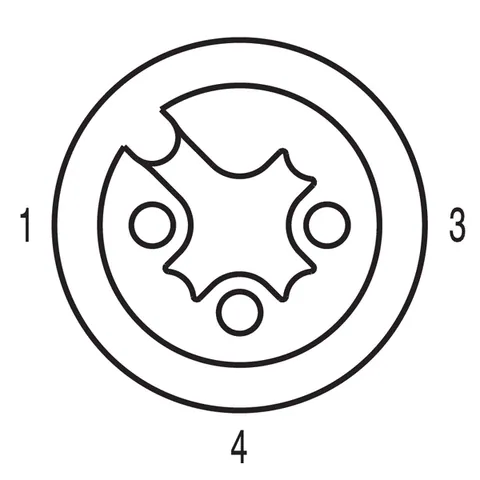

This M12 Connector is designed for sensor and actuator lines, featuring a 3-pole configuration and a cable length of 1.5 m. The connector is equipped with an angled socket and constructed from PVC, with a halogen-free sheath. It complies with the IEC 61076-2-101 standard, ensuring compatibility across multiple applications.

With a protection degree of IP65, IP66, IP67, and IP68 when properly secured, this connector can withstand various environmental conditions. The rated voltage is 250 V, while the rated current stands at 4 A. The housing supports a temperature range from -25 °C to +80 °C, making it suitable for both stationary and moving applications.

Each connection is designed for a minimum of 100 plugging cycles, providing reliable performance in demanding environments. The connector features a gold-plated contact surface for enhanced conductivity and durability. Additionally, it is classified under multiple standards, including cULus and REACH, ensuring compliance with industry safety and environmental regulations.
