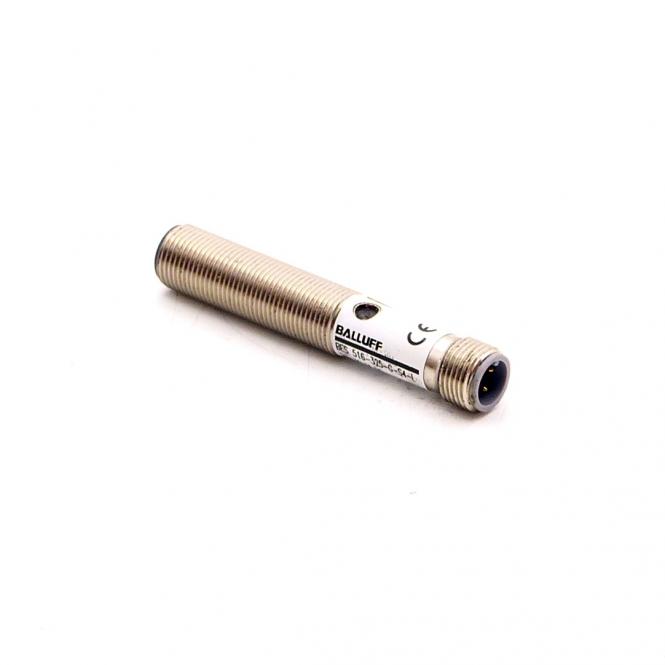

Balluff BES 516-325-G-S4-L

The inductive standard sensors are optimized for detecting objects within metal environments. With a flush mounting design and a compact dimension of Ø 12 x 70 mm, these sensors feature a switching output of PNP Normally open (NO) and a detection range of 4 mm. The robust brass housing is nickel plated for enhanced durability, and the sensing surface is made from LCP, ensuring resistance to dirt and contamination.

These sensors operate within an ambient temperature range of -25 to 70 °C and are suited for a variety of industrial applications, certified with IP67 for dust and water protection. They support an operating voltage of 10-30 VDC and feature a switching frequency of 600 Hz. Connection is facilitated via a 4-pin M12x1-Male connector, making integration straightforward.

With over 500 preferred types available globally, these sensors provide reliable and cost-effective solutions for various applications, adhering to multiple standards including CE, cULus, EAC, and WEEE.
