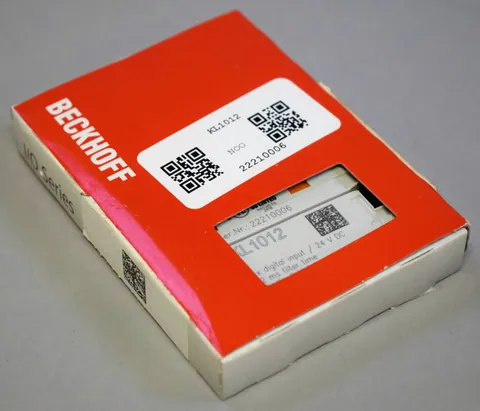

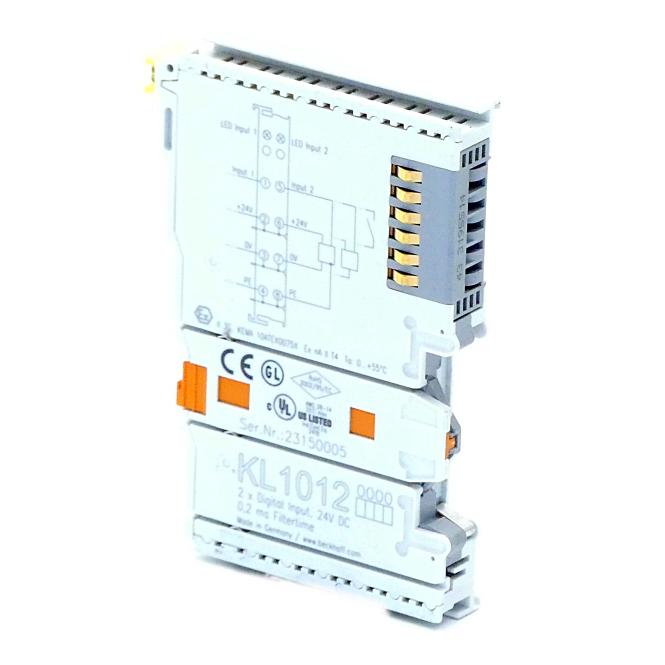

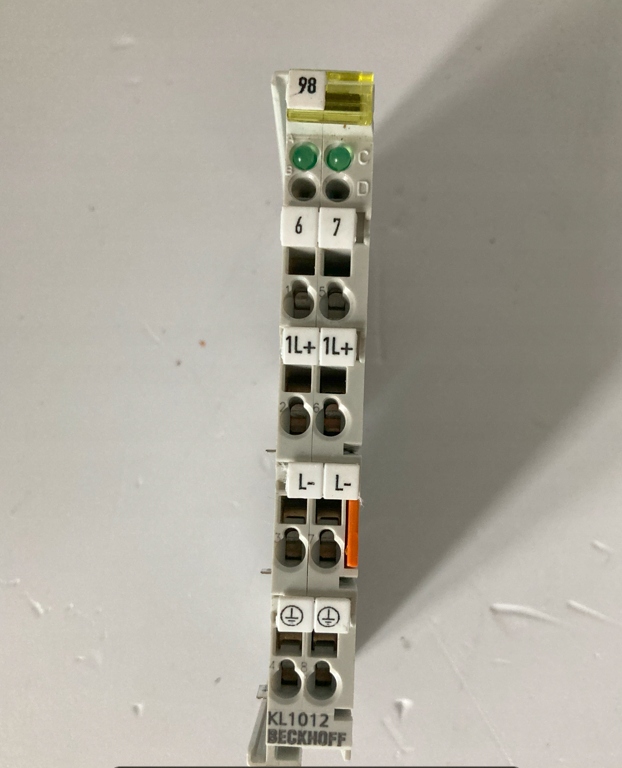

KL1012

Servomotor, 400...480 V, resolver, Mo = 4.75 Nm, Io = 4.84 Arms, nn = 5000 min-1

Servomotor, 400 V AC, Mo = 6.2 Nm, Io = 3.5 A, nn = 2500 min-1, forced cooling

Digital Compact Servo Drive, 1-axis module, 100…480 V AC, rated output current 40 A, EtherCAT interface, OCT, hardware version 2.0, firmware version 2.06

Digital Compact Servo Drive, 1-axis module, 3 x 400…480 V AC, rated output current 143 A, EtherCAT interface, hardware version 2.0, firmware version 2.06

Panel PC C3640-0070, 15-inch TFT display, resolution 1024 x 768

network cable for CP32xx, CP37xx, CPX37xx and CP72xx, length 5 m, assembled, Harting push-pull Ethernet connector IP 65, second end RJ45, IP 20

Fanless multi-touch built-in Panel PC CP27xx-0000, 19-inch display 1280 x 1024, Multi-finger touch screen

“Economy” built-in Panel PC CP67xx-xxxx-0050, 12-inch display 800 x 600, without keys

“Economy” built-in Panel PC CP67xx-xxxx-0060, 12-inch display 800 x 600, without keys, touch screen

“Economy” Control Panel CP79xx with DVI/USB Extended interface, 12-inch display 800 x 600, alphanumeric keyboard, touch pad

“Economy” Control Panel CP79xx with DVI/USB Extended interface, 15-inch display 1024 x 768, alphanumeric keyboard, touch pad

CANopen slave interface module ISA address: E6000 – number of fieldbus channels: 1 – open style connector, 5-pin – electrically isolated interfaces – transmission rate: 10, 20, 50, 100, 125, 250, 500, 800, 1000 kbaud – max. process image: 1536 bytes for the sum of inputs + outputs (max 192 PDOs) – interface to the CX core CPU through 16 bit ISA interface with 2 kB DPRAM – bus nodes per channel: max. 127 slaves – hardware diagnostics 4 LEDs – protection class IP 20 – operating/storage temperature 0 °C ... +55 °C/-25 °C ... +85 °C – weight approx. 190 g – dimensions (W x H x D) 38 x 100 x 91 mm

BACnet/IP Image for Embedded PC CX9020, CX5010 and CX5020 Requires: – TX1200 TwinCAT 2.11 R3 PLC Level Contains: – TS8020 TwinCAT BACnet/IP Supplement Revison 12

Extension module for 4 USB ports – 4 x USB 3.0 ports type A, total current max. 2 A – suppports USB 1.1, USB 2.0 and USB 3.0 standard – transfer rates: 1.5 Mbit/s, 12 Mbit/s, 480 Mbit/s and 5 Gbit/s – easy field modification possible – based on PCI Express – protection class IP 20 – operating/storage temperature: -25 °C … +60 °C/-40 °C … +85 °C – weight approx. 195 g – dimensions (W x H x D) 24 x 99 x 54.5 mm

Overcurrent protection terminal 24 V DC, 2-channel, max. 4 A, adjustable, extended functionalities

8-channel analog input, ±10…±1.25 V, ±20 mA, 24 Bit, 1 ksps, push-in, service plug 6-pin

8-channel digital input terminal 24 V DC, ground switching, filter 3.0 ms, 1-wire system

8-channel digital input terminal 24 V DC, ground switching, filter 10 µs, 1-wire system

PROFIBUS master PCIe module for PCs with Beckhoff PCIe module slots, 1-channel, PCI Express x1 bus
